Stylus Pen for Educational Interactive Blackboard & Conference Display

Send Inquiry

Product Introduction

Product Concept / Key Features

Using RF2.4GHz wireless technology, 360 degrees without directional limit, the maximum distance of page turning function is 30 meters, the maximum distance between flying mouse and voice is 15 meters, the product integrates flying mouse, page turning, voice and other functions, and can support the replacement of pen cap and the replacement of conductive silicone integrated pen, support magnet adsorption, the product is suitable for capacitive touch screen.

Product Specification Parameter

Serial number	Project	Description	State (√ and ×)
1	Wireless technology	RF 2.4GHz, maximum distance of 15 meters in open environment	√
2	Flying squirrel	Gyroscope + intelligent anti-shaking algorithm, six axis empty mouse + three axis acceleration	√
3	Voice control	The pickup distance is within 10cm, the minimum volume is 60dB, and the sampling rate is 16kHz	√
4	Battery	Ternary lithium battery 260mAh	√
5	Operating voltage	DC 3.7-4.2V	√
6	Working current	<12mA, using voice 22 mA	√
7	The dormant current	＜20uA	√
8	Charging interface	Interface: Microusb / Charging voltage: DC5V	√
9	Charging current	Charging current: 250MA, full time about 1H	√
10	Compatible interface	Usb 3.0/2.0/1.1 is supported	√
12	Foot inch	Product size: 156.31414mm	√
13	Weight	36g (including battery)	√
14	System requirement	Windows XP SP3 or later, Android, Linux, or Mac OS supports only page turning	√
15	Package contents	1. Smart pen body 2. Receiver 3. USB charging cable 4. Color box	√

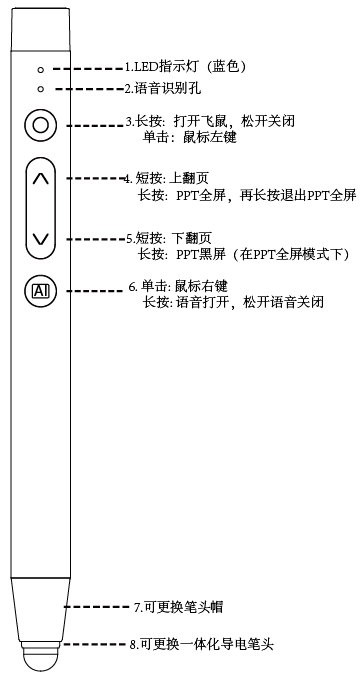

Product Function Diagram

Product Function Description

1. LED indicator (blue): ① Work indicator: press button LED blue light. ② Low voltage indicator: battery low (<3.2V) LED light flash. ③ Charging state: LED light slow flash (breathing light). ④ Full charge state: LED always on.
2. Speech recognition hole: When voice input is required, keep 10CM away from the inner lip against the voice hole, and long press the voice button to start the speech.
3. Mouse button: Long press to open the flying mouse, release the close, click: left mouse button.
4. Upper key: Short press to turn a page up (PageUp), long press the PPT full screen (Shift + F5), and then long press the PPT to exit the full screen (Esc).
5. Down: Short press to turn a page (PageDown), long press PPT black screen (PPT full screen mode).
6. Voice button: Right click the mouse, long press open to start voice input, release close.
7. Replacement pen head and cap: Users can replace the pen cap and head by rotating threads counterclockwise after the pen head is worn or in different scenes.
The way of code
Start the pair code	At the same time, press the "up button" and "down button", the blue light flashes quickly, and the smart pen enters the pair code mode. Insert the receiver into the host machine.
The code success	When the code is successful, the smart pen blue light flashes quickly and goes off.
Failed to code	The blue light continues to flash and automatically exits the code mode for a time of 30 seconds.

* The default one-to-one pairing of products. If there is any abnormality, please follow the above steps to match the code.

Product Size Drawing

product-544-608

Product Acceptance Standard

Serial number	Project	Determine the standard	Sample picture	Bad grade
01	Basic appearance	Appearance judgment The inductive scratch is not accepted Noninductive scratch: visually visible from 50CM Touch, abrasion: less than 0.3MM, acceptable 2 points, DS 1CM The surface of the product shall not be dirty The product can not shrink bad No cracks or gaps are allowed Heochromatic point 0.3MM allows 2 points on single side Single color point 0.5MM, 2 points on single side, spacing 30MM Test conditions: light intensity 800 LUX distance 30-35CM	There is no	MI
02	Color	No miscellaneous spots, uniform color, consistent with the sample and color number, color difference △ E 3.0 can be received, according to the sample and upper and lower limits	There is no	MI
03	Gap interval difference	The segment difference of all assembly gaps of the pen is 0.2MM; the segment difference is uniform	There is no	MI
04	Printing	Logo handwriting is clear, no error, no burr on the edge and other abnormalities Logo position according to the drawing requirements, tolerance is ±2mm	There is no	MI
05	Magnet adsorption	Adsorption machine does not fall off	There is no	MI

Product Application

Conferences and education

Product Advantage

Set writing page turning, flying squirrel, voice integrated easy to use.

Stroke size is up to you

Tilt bold design, the thickness is controlled by you, restore the real writing experience to seize your every flash of inspiration.

Writing fluency without delay, can be written small character annotation network class notes annotation without delay more accurate.

Product Packaging Content (According to customer requirements)

Serial number	Project	Material	Specification	Printing	Dosage	State (√ and ×)	Packing instruction
1	Intelligent pen body	Aluminum alloy + plastic + silicone			1	√
2	USB charging cable	2 core black leather wire	Nickel plated MICRO head, OD=3.5MM*L=30CM		1	√
3	Packing box	1000G high density powder ash board mounted 157G single copper, surface covered with matte film		Printed	1
4	Specification	128 g double copper paper color print covered with matte film, roll folding	55*100MM		1
5	Outer box	Y838Y corrugated paper
6	Batch label	Self-adhesive
7
