EMR+ PCAP Dual Touch Screen

Your Professional EMR+ PCAP Dual Touch Screen Supplier

Shenzhen Huading Star Technology Co., Ltd. has evolved into a high-tech enterprise specializing in the development of electromagnetic touch screens, metal grid capacitive touch screens, 3D printed capacitive touch films, electromagnetic-capacitive hybrid touch screens, and stylus products. Leveraging its core competencies in chip R&D, circuit design, module engineering, manufacturing processes, and reliability testing, the company offers comprehensive touch product solutions tailored to customer needs.

Quality Assurance
Each shipment is accompanied by a detailed quality inspection report, ensuring transparency and addressing any concerns regarding product quality.

Research and Development Capabilities

The company holds numerous domestic and international invention patents, demonstrating robust R&D capabilities and promising market potential.

Efficient Transportation Solutions

Through strategic partnerships with leading maritime, air freight, and logistics providers, we deliver optimized transportation solutions that meet your specific requirements.

OEM & ODM Available

We can accept OEM and ODM service, custom your own size/shape.

First 1 2 3 4 Last 1/4

Specification

Project	Content
Principle	Eletromagnetic + Capacitive dual touch screen
Overall dimension	478.64mm*270.11mm
AA zone	476.64mm*268.11mm
TP size	21.5"
Interface type	USB
Operating temperature	TOPL=20. TOPH=70
Storage temperature	TOPL=-30, TOPH=80
Sensor thickness	0.33
Input force	＜10g
Control IC	HDX
Capacitor input/output channel	TX:41 RX:72
Transmittance	＞85%
Support system OS	WINGDOG/Andriod
Electromagnetic touch specification
Project	Content
Principle	Electromagnetic Resonance
Resolution	5080LPI
Coordinate accuracy	Area A：±0.5mm Area B：±0.7mm Area C：±1.0mm
Tilt coordinate accuracy	±3mm
Inductive height	3to10mm
Suspension height	8 to 15mm
Burst rate	266pps
Pressure level	Level 8192
Capacitive touch
Project	Content
Principle	Capacitive touch
Resolution	500dpi
Touch point	10
Coordinate accuracy	±1.18mm
Single touch speed	90pps
Multitouch speed	70pps

Types of EMR+ PCAP Dual Touch Screen

The EMR+ PCAP dual touch screens produced by our company mainly include the following types:

86" Eletromagnetic And Capacitive Dual Touch Sensor

By combining these two technologies into one, EMR+PCAP 2-in-1 touch screens offer the best writting experiece. It enables users to switch between a stylus and finger touch with ease, making it highly versatile. Users can enjoy high precision when drawing or writing, and then switch to finger touch for scrolling and pinching.

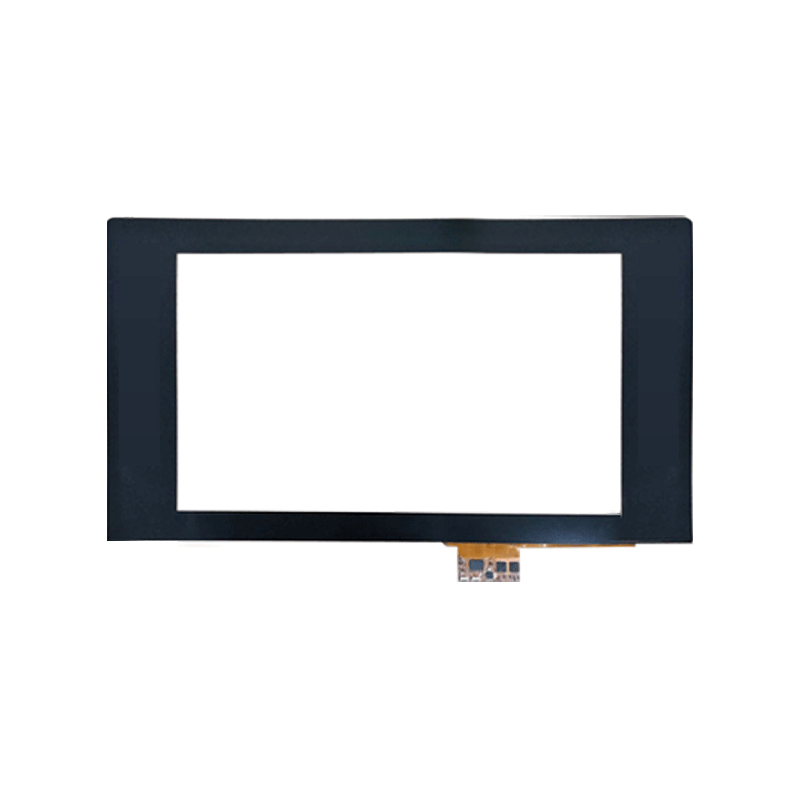

23.8" EMR And PCAP 2-IN-1 Dual Touchsreen Foil

By combining EMR and PCAP technologies into a single touch interface, users can benefit from the strengths of both systems. EMR provides precise and pressure-sensitive input for tasks that require accuracy, such as digital art creation, while PCAP offers multi-touch functionality for intuitive interactions like zooming and rotating objects on the screen.

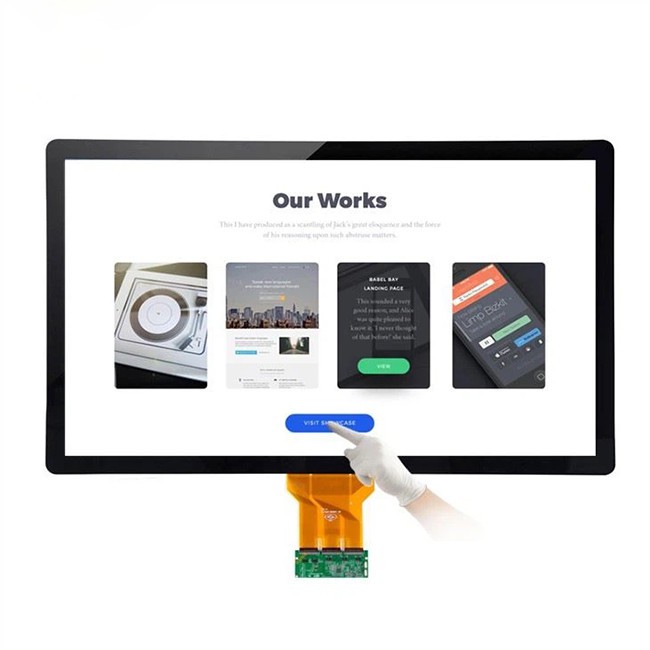

21.5 To 98 Inch Capacitive Multi Touch Screen

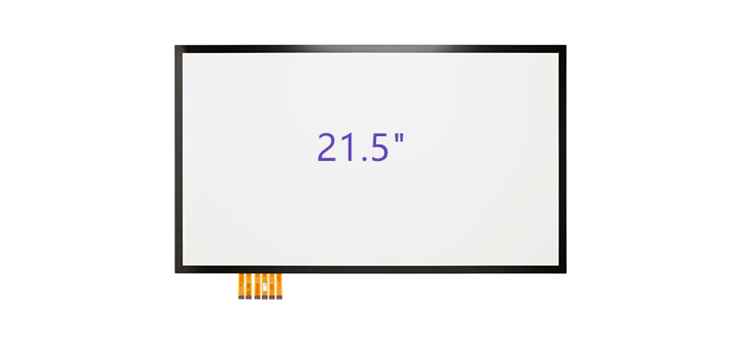

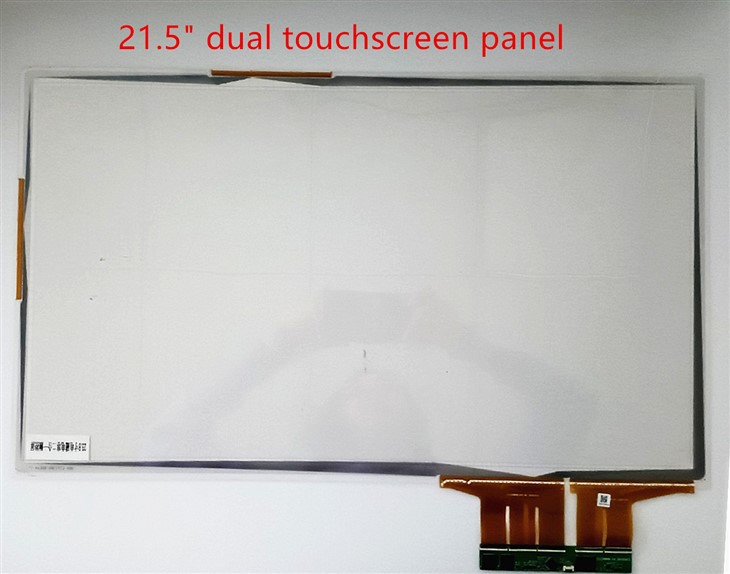

21.5" EMR And PCAP 2-IN-1 Touch Foil

By combining EMR and PCAP technologies in a single touch screen, a device can potentially offer the benefits of both technologies, providing users with a versatile input method that supports both precise stylus input and intuitive touch interaction.

productcate-1-1

Advantages of EMR+ PCAP Dual Touch Screen

High-precision touch
Electromagnetic touch technology provides high-precision touch positioning, which is suitable for scenes requiring fine operation, such as drawing, design, etc.

Multi-touch support
Capacitive touch technology supports multi-touch, allowing users to operate with multiple fingers, improving the flexibility and efficiency of interaction.

Strong anti-interference ability
Electromagnetic touch technology has strong resistance to external interference, and can work normally in an environment with large electromagnetic interference and maintain stable touch performance.

Support pen operation

Due to the characteristics of electromagnetic touch technology, this two-in-one touch screen usually also supports electromagnetic pen operation, which is suitable for application scenarios requiring accurate handwriting, such as signing, painting, etc.

High sensitivity and response speed

Capacitive touch technology usually has high sensitivity and response speed, and users can operate by simply touching the screen, providing a smooth touch experience.

Suitable for large-size screens

This 2-in-1 touch screen technology is suitable for large-size screens, such as interactive displays, large tablets, etc., to provide a stable and reliable touch experience.

More cost effectivet and performance

By combining two different touch technologies, the cost can be reduced while meeting the performance requirements, making this two-in-one touch screen have a good cost performance.

Comparison Of Product Parameters

Contrast item	Huadingxing electromagnetic capacitive 2-in-1 touch sensor	Huadingxing Capacitive or Electromagnetic touch sensor	Capacitive + Active capacitive handwriting
Assembly method	Easy to assemble, just needs to paste to tempered glass	PCAP just needs to paste with tempered glass, EMR sensor needs to be placed in back of liquid crystal	Easy to assemble, only need to taste withtempered glass
Support size	10.1 "-86"	3 "- 86 "	Difficult to mass-production if bigger than 46"
Handwriting accuracy	High	High	Low
Pressure	Up to 8192	Up to 8192	Under 4096
Tilt Angle identification	Support	Support	Support
Side key function	Can be two	Can be two	Can be two
Battery	Need	Active electromagnetic stylus need battery, passive electromagnetic stylus needn't battery	Need
Nib conduction	Needn't	Needn't	Need
Choice of the nib	Variety (Felt/POM/Elastomer/Ceramic etc.)	Variety (Felt/POM/Elastomer/Ceramic etc.)	Two types (POM/Elastomer)
Ease of nib change	Can be changed freely	Can be changed freely	Cann't be change freely (FW needs to change according to different nib materials)
Design diversity	Many choices, high freedom, support for multiple pens	Few choices, low freedom, support for multiple pens	Few choices, low freedom, only support a single stylus
Compatibility	Android,apple,Windows,Linux	Android,apple,Windows,Linux	Need to as per different operating systems to use specialized protocol
Cost comparison	Low	High	Low
Whether multiple stylus are supported	Max four stylus are supported	Four stylus	Single stylus
Induced suspension height	5-30㎜	5-30mm	2-5mm

Customizable Options for EMR+ PCAP Dual Touch Screens

The touch foil size
The touch foil shape
Pasting services
Glass cover surface treatment AG, AF, AR

Packaging and Shipping

Packaging	Packed with carton box and foam material
Shipping	We will help you to choose the best shipping way according to your detail requirements. By sea, by air, or by express, etc.

Our Factory

Shenzhen Huading Star Technology Co., Ltd. founded in 2012, has production bases in Daling Mountain, Dongguan, and Wan'an County, Jiangxi Province, with a total plant area of 15,000 square meters.

productcate-1-1

Honor And Qualification

At present, the company has obtained more than 50 patents: 23 invention patents, 22 utility model patents, and 11 soft.

Our Partners

FAQ

Q: What is an EMR + PCAP dual touch screen?

A: An EMR (Electro - Magnetic Resonance) + PCAP (Projected Capacitive) dual touch screen combines two different touch - sensing technologies. EMR technology allows for precise input using a stylus, which is great for tasks like drawing, note - taking, and detailed design work. PCAP technology enables multi - touch gestures with fingers, providing a more intuitive and common - use touch interface for operations such as swiping, pinching to zoom, and tapping.

Q: Can both EMR and PCAP be used simultaneously on the dual touch screen?

A: In most cases, yes. Modern EMR + PCAP dual touch screens are designed to support the simultaneous use of both technologies. This means a user can hold the device with one hand (using PCAP - enabled finger touches) while using a stylus with the other hand for more precise input, such as taking notes while browsing a document.

Q: What types of devices are likely to use an EMR + PCAP dual touch screen?

A: Tablet computers, especially those targeted at creative professionals like graphic designers, digital artists, and architects, are common users. Some convertible laptops that need to function as both a traditional laptop and a tablet with touch - based input also use this technology. Additionally, certain industrial control panels where both precise input (with a stylus) and quick, intuitive touch - based operations are required may incorporate EMR + PCAP dual touch screens.

Q: What is the difference between PCAP and resistive touch screen?

A: PCAP (Projected Capacitive) touchscreens offer a more modern, sensitive, and multi-touch capable experience, while resistive touchscreens are more pressure-sensitive and often used in industrial settings or where gloved hands are common.

Q: Does a capacitive touch screen need calibration?

A: Accurate calibration of a capacitive touch screen is crucial for any device that utilizes a touchscreen. Without proper calibration, the user experience can be compromised and inaccurate data may be collected.

Q: Can you use a stylus on a capacitive touch screen?

A: As long as your screen has a capacitive sensor and is compatible, you can use this type of stylus. Thankfully, most touch screens used in modern electronic devices are of the capacitive type.

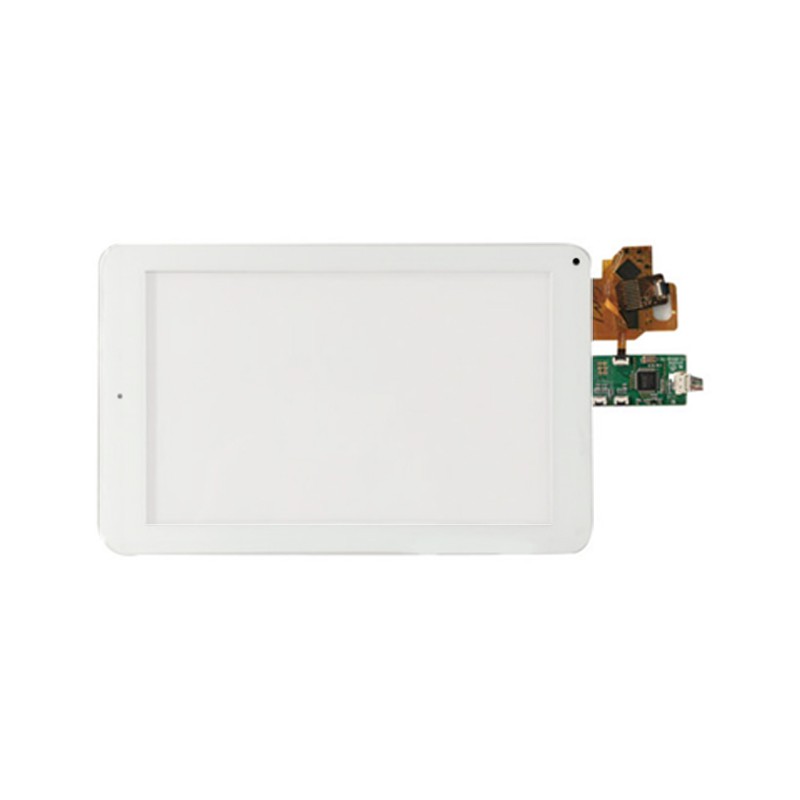

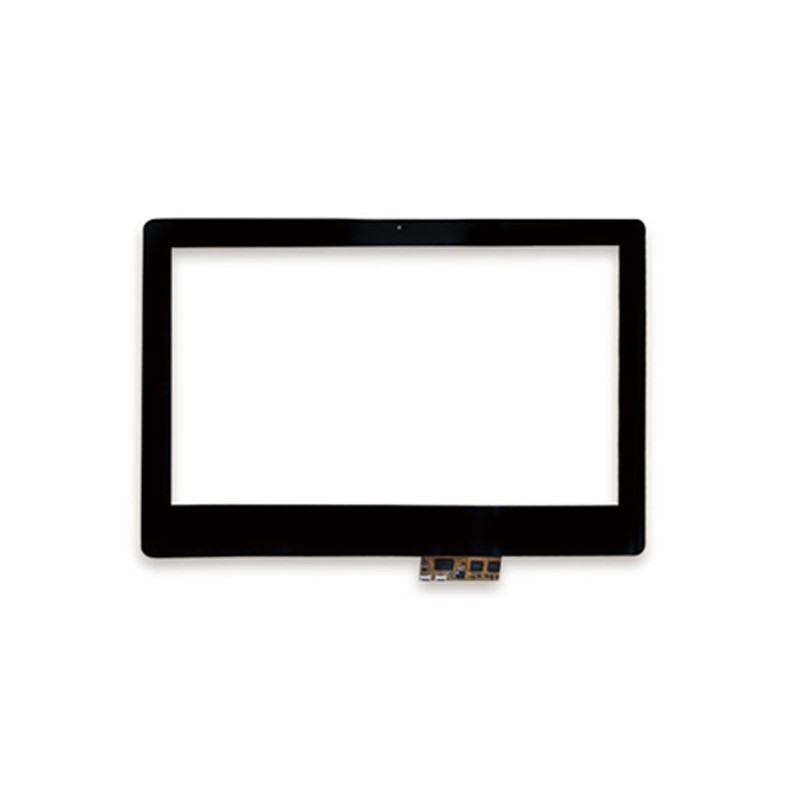

As one of the leading dual touch screen manufacturers and suppliers in China, we warmly welcome you to buy discount dual touch screen in stock here from our factory. All customized products are with high quality and competitive price. For free sample, contact us now.10 1 Inch Electromagnetic Capacitive Dual Touch Screen, 21 5 inch electromagnetic capacitive two in one touch screen, 15 6 Inch Electromagnetic Capacitive Dual Touch Screen
