10.1 Inch Electromagnetic Capacitive Dual Touch Screen
Product Application
- Gaming: Touch screens provide an intuitive and immersive experience for video and mobile gaming.
- Education: Touch screen technology is commonly used in classroom Settings for interactive learning and collaboration.
- Medical devices: Touch screens are often used in medical devices for data entry and monitoring, as well as patient education.
Key Features
1. Electromagnetic technology: The touch screen uses electromagnetic technology, allowing users to interact with digital content using a stylus.
2. Capacitive touch technology: Touch screen also has capacitive touch technology, which allows users to use their fingers and digits inside
Allow interaction.
3. Multi-user support: The touch screen can detect multiple contacts at the same time, which is suitable for multi-user scenarios.
4. Compatibility: The touch screen is compatible with various operating systems and suitable for a wide range of computing devices.

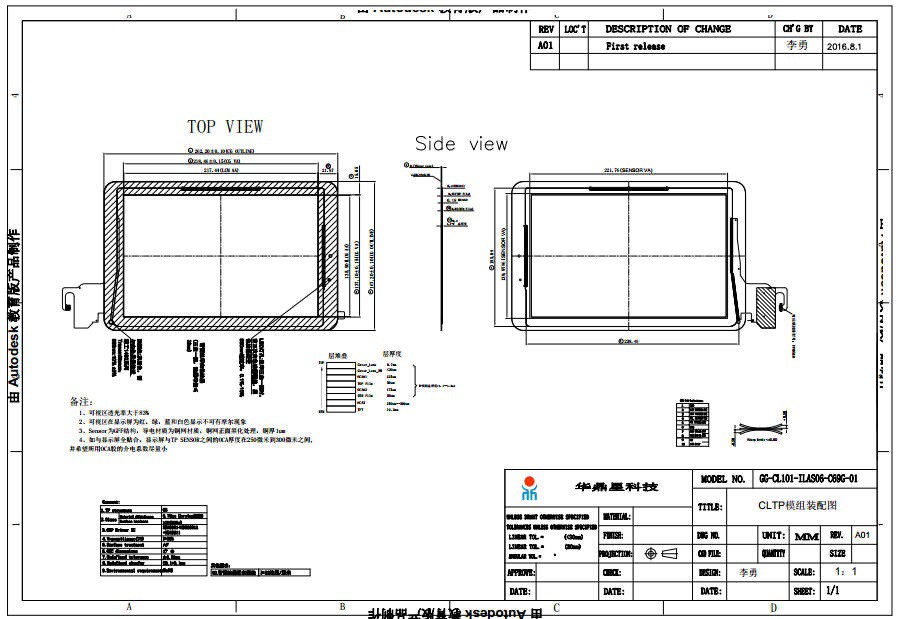

Size of Product
|
Dual Touch Screen |
||
|
Product Specification |
||
|
Project |
Content |
Remarks |
|
Principle |
Dual touch screen |
|
|
Overall dimension |
262.2mm (L) * 167.2mm (H) |
|
|
Total thickness |
1.3 (Cover-Lens + Glue + Sensor) |
|
| AA Zone |
217.44mm*135.9mm |
|
|
TP dimension |
10.1 |
|
|
Interface type |
I②C |
|
|
Operating temperature |
TOPL = -10, TOPH = 60 |
|
|
Storage temperature |
TOPL = -20, TOPH = 70 |
|
|
Sensor thickness |
0.4 |
|
|
Input force |
< 10g |
|
|
Control IC |
HDX8801B + HDX8811 + HDX8821A |
|
|
Capacitor input/output channel |
X: 42 Y: 27 |
|
|
Transmittance |
>88% |
|
|
Supports the system OS |
WINGDOG/ IOS/ Andriod |
|
|
Electromagnetic Touch Specification |
||
|
Product Specification |
||
|
Project |
Content |
Remarks |
|
Principle |
Electromagnetic Resonance |
|
|
Resolution |
4096LPI |
|
|
Coordinate accuracy |
Area A: ±0.5mm Area B: ±0.7mm Area C: ±1.0mm |
|
|
Tilt coordinate accuracy |
±3mm |
|
|
Inductive height |
3to10mm |
|
|
Suspension height |
8 to 15mm |
|
|
Burst rate |
＞266pps |
|
|
Pressure level |
Level 8192 |
|
|
Capacitive Touch |
||
|
Product Specification |
||
|
Project |
Content |
Remarks |
|
Principle |
Capacitive touch |
|
|
Resolution |
500dpi |
|
|
Touch point |
10 |
|
|
Coordinate accuracy |
±1.18 mm |
|
|
Single touch speed |
＞90pps |
|
|
Multitouch speed |
＞70pps |
|
