23.8 Inch Electromagnetic Capacitive Dual Touch Screen
23.8 Inch Electromagnetic Capacitive Dual Touch Screen
Product Application
The 23.8-inch electromagnetic capacitive dual touch screen module is suitable for display terminals of control systems, commercial digital displays, industrial applications, desktop computers and workstations, stand-alone monitors for small displays, process controller monitors, etc.
Product Advantage
● Large Screen: A 23.8-inch display is larger than most laptop screens, making it easier to read and control.
● Touch Screen: The touchscreen interface allows a more intuitive user experience and eliminates the extra peripherals like a keyboard and mouse, making it more convenient to use.
● Versatility: A 23.8-inch touchscreen can be used in a variety of scenarios such as gaming, video conferencing, digital art, or business presentations.
● Easy to set up: Touchscreen products are generally easy to set up with simple plug-and-play functionality.

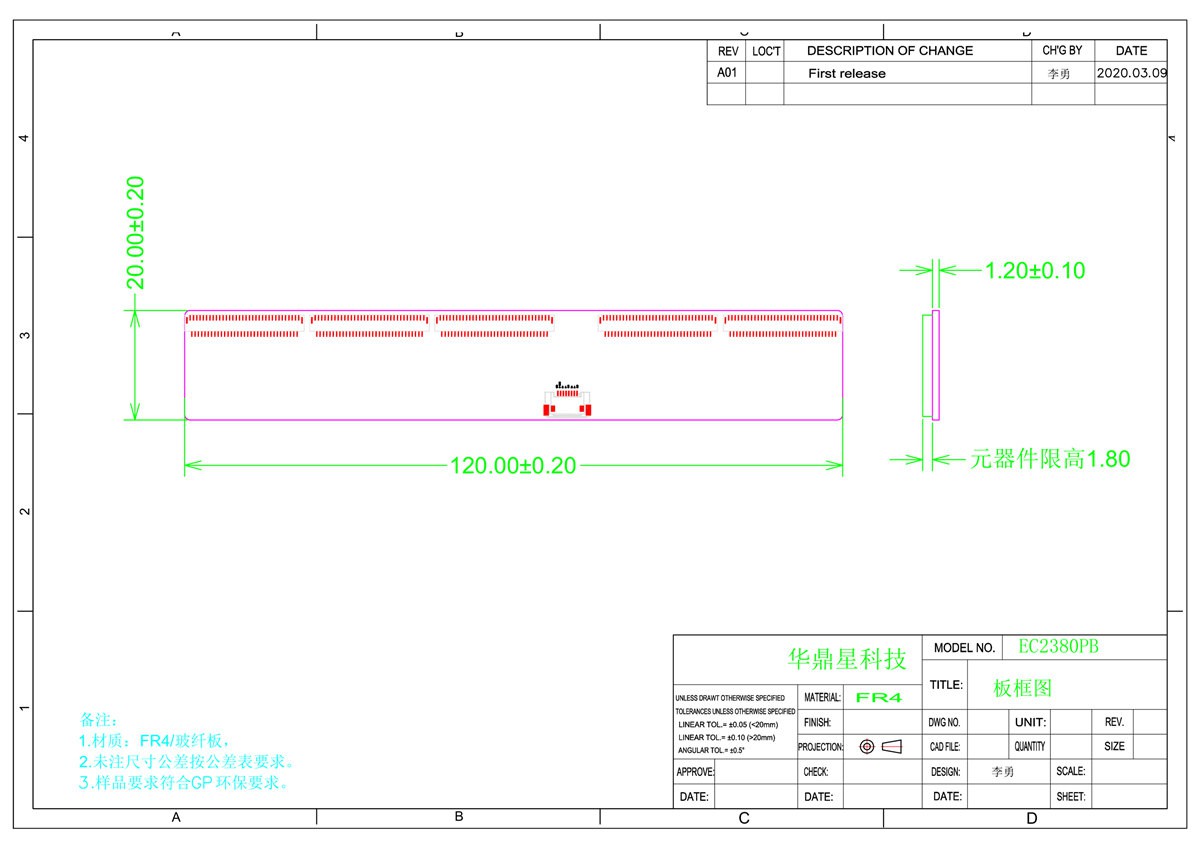

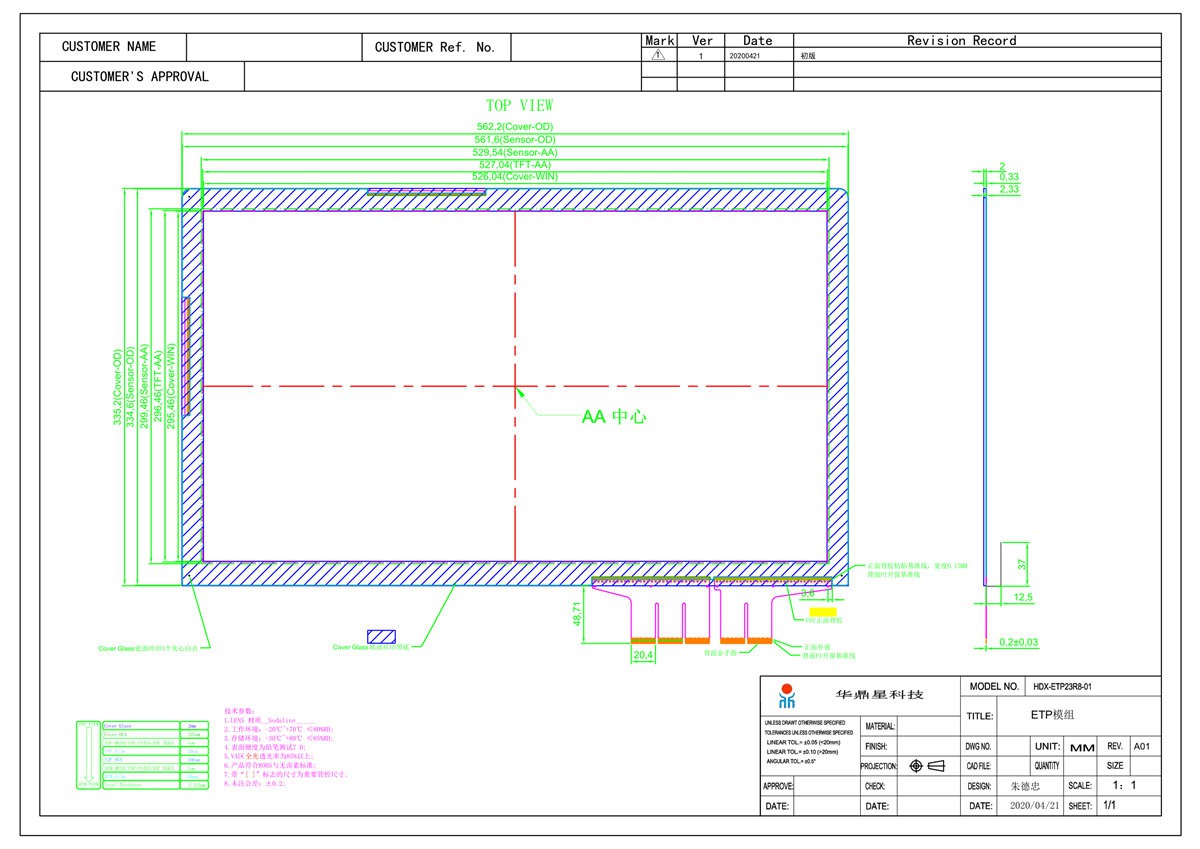

Appearance Drawing
The Engineering Drawings are as follows:
Product Specification
|
Dual Touch Screen |
||
|
Product Specification |
||
|
Project |
Content |
Remarks |
|
Principle |
Dual touch screen |
|
|
Overall dimension |
562.2mm (L) * 335.2mm (H) |
|
|
Total thickness |
2.33 (Cover-Lens + Glue + Sensor) |
|
|
AA zone |
527.04mm*296.46mm |
|
|
Visual area |
526.4mm*295.46mm |
|
|
TP size |
23.8 |
|
|
Interface type |
USB |
|
|
Operating temperature |
TOPL=20. TOPH=70 |
|
|
Storage temperature |
TOPL=-30, TOPH=80 |
|
|
Sensor thickness |
0.33 |
|
|
Input force |
＜25g |
|
|
Control IC |
HDX8801B + HDX8811 + HDX8821A |
|
|
Capacitor input/output channel |
TX: 45 RX: 80 |
|
|
Transmittance |
＞85% |
|
|
Support system OS |
WINGDOG/ IOS/ Andriod |
|
|
Electromagnetic Touch Specification |
||
|
Product Specification |
||
|
Project |
Content |
Remarks |
|
Principle |
Electromagnetic Resonance |
|
|
Resolution |
4096LPI |
|
|
Coordinate accuracy |
Area A: ±0.5mm Area B: ±0.7mm Area C: ±1.0mm |
|
|
Tilt coordinate accuracy |
±3mm |
|
|
Inductive height |
3to10mm |
|
|
Suspension height |
8 to 15mm |
|
|
Burst rate |
＞266pps |
|
|
Pressure level |
Level 8192 |
|
|
Capacitive Touch |
||
|
Product Specification |
||
|
Project |
Content |
Remarks |
|
Principle |
Capacitive touch |
|
|
Resolution |
500dpi |
|
|
Touch point |
10 |
|
|
Coordinate accuracy |
±1.5 mm |
|
|
Single touch speed |
＞90pps |
|
|
Multitouch speed |
＞70pps |
|
