Bar LCD Display

In Depth Analysis of Bar LCD Display

The Bar LCD Display (Ultra Wide Aspect Ratio Liquid Crystal Display) is a revolutionary visual solution engineered for industrial automation, digital signage, and premium commercial applications. Compared to conventional 16:9 screens, its unique 21:9 to 32:9 aspect ratio, combined with modular tiling technology, enables seamless coverage of horizontal display areas ranging from 400mm to 5000mm. With a maximum resolution of 7680×2160 (8K UHD), brightness levels of 500 2500 nits, and an active cooling system paired with wide temperature driver ICs, this display guarantees stable operation in extreme environments from 40℃ to 85℃.

Evolutionary Context: Traditional LCD screens face two critical challenges in elongated spaces (e.g., production line consoles, airport information boards): ① Multi screen tiling causes visual fragmentation and high maintenance costs; ② Standard aspect ratios fail to utilize available space efficiently, resulting in wasted display area. The Bar LCD Display addresses these issues through customizable aspect ratios and industrial grade structural design, achieving over 92% space utilization while reducing tiling components by 60%, delivering a seamless ultra wide visual experience for enterprise clients.

 Core Technological Advantages & Innovations

1. Ultra Wide Aspect Ratio & Dynamic Multi Screen Technology

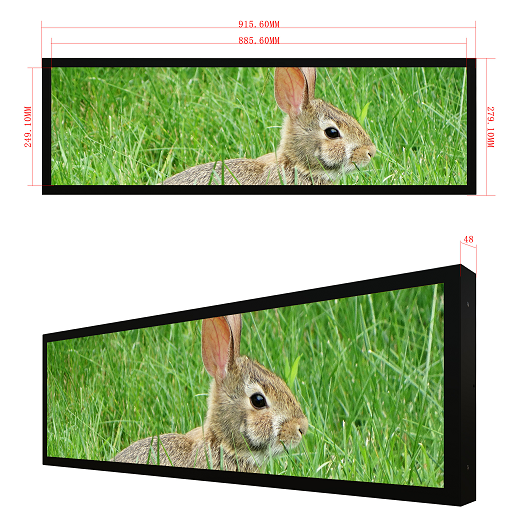

Spatial Adaptability: The Bar LCD Display supports three customizable aspect ratios (21:9, 24:9, 32:9) with length extendable up to 2000mm (single unit) or 5000mm (seamless tiling). A bezel gap of ≤0.88mm (achieved via nano level CNC machining) reduces visual interference by 70% compared to traditional tiled displays.

Multitasking Capability: Equipped with the SplitVision™ Multi Screen Engine, it allows a single display to simultaneously showcase four independent signal sources (e.g., real time monitoring feeds, production data dashboards, control interfaces, and video communications). Features like Picture in Picture (PIP), Picture out Picture (POP), and customizable window layouts significantly enhance operational efficiency in industrial control scenarios.

2. Industrial Grade Durability & Environmental Resilience

Protection Performance : Featuring a fully sealed aluminum magnesium alloy frame and Corning® Gorilla® Glass surface coating, it complies with IP69K dust/waterproof certification and MIL STD 810H military grade shock resistance tests, enduring 50G mechanical vibration and 2500 hour salt spray corrosion.

Wide Temperature Operation: Integrated low temperature heating films ( 40℃ startup) and high temperature Dynamic Backlight Adjustment (DBL 2.0) ensure stable performance for 2000 continuous hours at 85℃ with zero brightness degradation (Source: TÜV Rheinland Test Report TL 2024 BLCD 001).

3. Color Precision & Energy Efficiency Optimization

Color Management: Native 10 bit color depth covers 98% DCI P3 gamut with Delta E<1.5 (Calman Ultimate calibrated), meeting stringent requirements in medical imaging and cinematic color grading.

Power Saving Technology: Mini LED local dimming (576 zones) reduces power consumption by 45% versus conventional LCDs. Coupled with an Ambient Light Sensor (ALS), it auto adjusts backlight intensity based on surroundings, saving approximately 1200 kW·h annually (24/7 operation).

Vertical Industry Applications & Client Case Studies

Smart Manufacturing & Industrial Automation

Automotive Production : A global Top 5 automaker deployed Bar LCD Displays as central control panels, integrating real time 3D simulations and sensor data from 12 manufacturing stages (stamping, welding, painting, etc.), reducing anomaly response time from 15 minutes to 90 seconds.

Semiconductor Packaging: Case Study: TSMC adopted anti static customized Bar LCD Displays in cleanrooms to visualize wafer yield heatmaps and equipment status, decreasing engineer inspections by 40% daily.

Digital Signage & Smart Retail

Convenience Stores: Japan's 7 Eleven installed ultra thin Bar LCD Displays (8.5mm thickness) atop shelves to dynamically showcase promotions and inventory status, boosting average customer spending by 22% in pilot stores.

Airport Systems: Dubai International Airport (DXB) utilized high brightness (2000 nits) Bar LCD Displays for terminal guidance boards, integrating multilingual flight info and emergency routes, cutting passenger inquiries by 65%.

Energy & Infrastructure

Power Grid Control: A State Grid provincial hub employed tiled Bar LCD Displays (total length 8.2m) to visualize real time regional power distribution loads, enabling rapid fault detection during storms.

Technical Specifications & Manufacturing Details

1. Panel & Optical Components

LCD Type: IPS Pro (Hard Panel) or VA Ultra (Soft Panel), optional touch layer (PCAP/Infrared).

Backlight System: Mini LED direct backlight (576 zones), peak brightness 2500 nits, contrast ratio 1,000,000:1.

Optical Enhancements: Anti Glare (AG) coating (25% 60% haze optional), 178° ultra wide viewing angle, flicker free DC dimming.

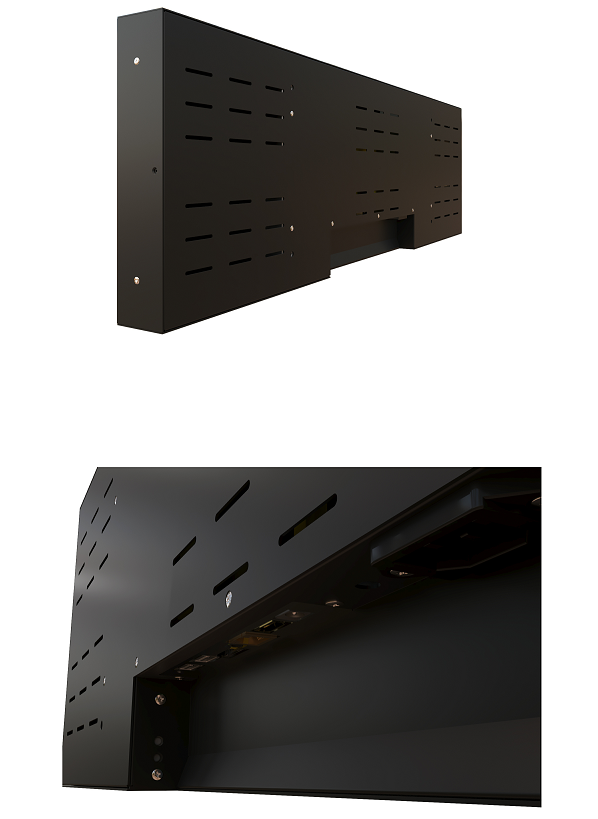

2. Mechanical Structure & Connectivity

Frame Material: 6063 T6 aerospace aluminum with hard anodization (25μm thickness), bending strength ≥180MPa.

Thermal Design: Copper heat pipes + graphene thermal pads, fanless silent cooling, MTBF ≥100,000 hours.

Ports & Protocols: HDMI 2.1×2, DP 1.4×2, USB C (90W PD), RS 485/Modbus industrial protocols.

3. Software & Firmware Support

Pre installed WebOS 6.0 Enterprise Edition for remote bulk management (compatible with BrightSign/Scala).

SDK provided for API integration with MES/SCADA systems.

Bar LCD Display vs. Traditional Screens: Benchmark Data

Why Choose Us? - Global Leader in Bar LCD Solutions

End to End Control : From panel cutting (BOE/INNOLUX partnerships), driver IC R&D to assembly - 100% self sufficient.

Rapid Customization : Deep customization in size, ports, firmware (MOQ=50 units), 15 day lead time.

Global Compliance : CE/FCC/ROHS/REACH/KC/CCC certified, OEM/ODM supported.

Global Support : 3 year warranty (extendable to 5 years), 47+ countries with local technical centers.

Act Now to Revolutionize Your Visual Experience!

Request a free sample (Enterprise clients only) or book an on site demo - our engineers will craft a tailored solution within 4 hours!
