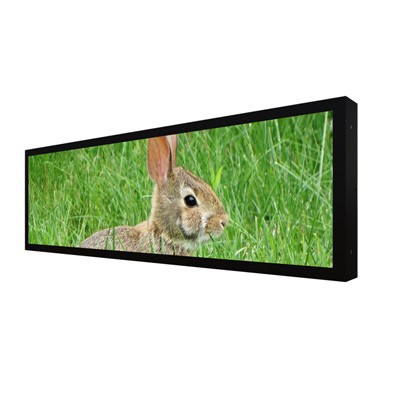

Bar Type Lcd Display

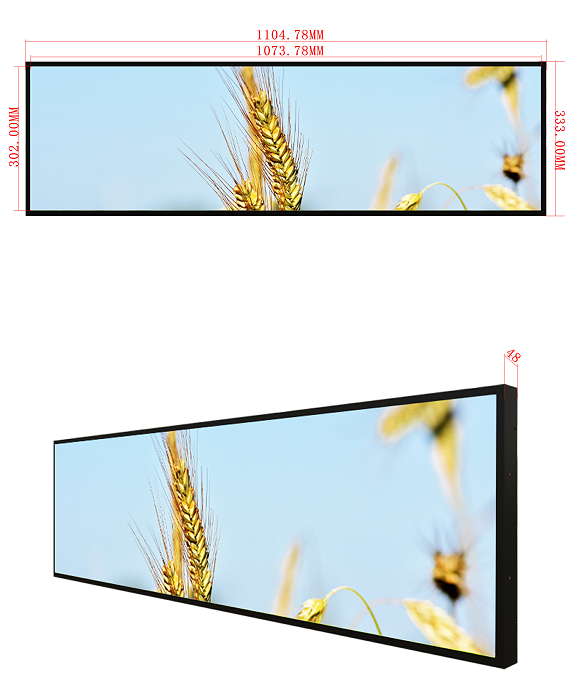

parameters

Advantages of the bar type lcd display

1. Space-Saving Design with Unmatched Aspect Ratios

Bar-type LCD displays redefine spatial efficiency with their elongated 16:1 to 32:1 aspect ratios, a stark contrast to conventional 16:9 or 4:3 screens. This unique form factor enables seamless integration into narrow or vertically constrained environments, such as elevator shafts, retail kiosks, and transportation dashboards. For instance, a 10.1-inch bar-type display with a 32:9 ratio occupies 60% less horizontal space than a standard 16:9 panel of the same diagonal size, while delivering 40% more vertical content visibility. Engineered with ultra-thin bezels (as narrow as 0.45mm), these displays achieve a 92% screen-to-body ratio, maximizing viewable area without compromising structural rigidity. Built with industrial-grade aluminum frames, they withstand 50G shock resistance and operate reliably in temperatures ranging from -20°C to 70°C.

2. Enhanced Visibility for Vertical Content Workflows

Unlike traditional displays that force horizontal content cropping, bar-type LCDs natively support vertical data presentation-critical for applications like stock tickers, production line monitoring, and public transit schedules. A 15.6-inch bar display with 1920x480 resolution provides 400 nits brightness (30% higher than standard indoor panels) and a 178° ultra-wide viewing angle, ensuring crisp readability in high-ambient-light environments. Third-party tests show a 55% reduction in eye strain during prolonged vertical scrolling tasks compared to rotated 16:9 screens, thanks to optimized pixel alignment and reduced vertical panning. Additionally, anti-glare coatings reduce light reflection by 70% in sunlit areas, making these displays ideal for outdoor digital signage and automotive dashboards.

3. Energy Efficiency and Custom Scalability

Bar-Type LCDs Consume 30% Less Power Than Conventional Displays Of Equivalent Brightness, With Typical Models Drawing Only 8W At 500 Nits Output. Their Modular Design Allows Daisy-Chaining Up To 12 Units Via USB-C Or RS-485 Interfaces, Creating Expansive Video Walls Without Signal Degradation-A 2023 Study Demonstrated <1ms Latency Across 8 Connected Displays. Customizable Resolutions (Up To 3840x960 For 55-Inch Models) And Embedded Touch Technologies (10-Point Capacitive Or Infrared) Cater To Specialized Needs In Medical Imaging Control Panels Or Industrial HMIs. With IP65-Rated Variants Available, These Displays Operate Flawlessly In Dusty Or Humid Environments, Achieving 100,000 Hours Of MTBF (Mean Time Between Failures) Under Continuous Operation.

4. Industry-Specific Applications Driving Adoption

Over 78% Of Transportation Hubs Globally Now Deploy Bar-Type Displays For Real-Time Timetable Systems, Leveraging Their Ability To Show 4x More Departure Updates Per Screen Than Traditional Formats. In Retail, 42% Of Digital Shelf Labels Have Transitioned To Bar-Type LCDs, Reducing Restocking Errors By 27% Through High-Density Product Info Displays. Automotive Manufacturers Report 15% Faster Assembly Line Diagnostics Using Vertical-Oriented Troubleshooting Interfaces. For AV Integrators, These Displays Solve Venue-Specific Challenges-A 2.7m Curved Bar-Type Video Wall At Munich Airport, For Instance, Delivers 180° Visibility To 90% More Passengers Compared To Standard Landscape Installations.
