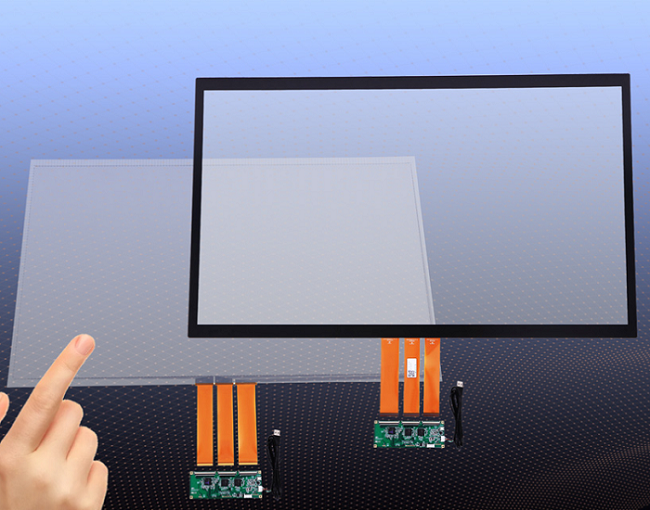

65 Inch metal mesh capacitive touch foil for Interactive displays

65 inch Metal Mesh PCAP Touch Screen Foil For Interactive Flat Panel Display

Metal Mesh technology Principle

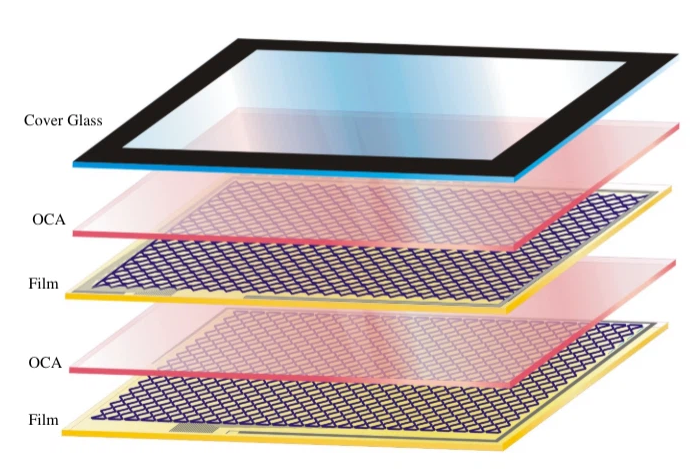

The metal mesh PCAP touchscreen functions by having a layer of thin copper wires or mesh embedded on the surface of the screen. It is composed of two layers of transparent film, in the middle of which is a grid matrix layer composed of a layer of metal wires crossed in the direction of X and Y axis, each matrix constitutes an induction unit, which can sense the touch of the human hand. When a finger touches the screen, it disrupts the grid pattern, allowing for this touch to be detected and registered by the system.



At present, the PCAP interactive touch film / touch foil is the only new way that can realize curved surface, full penetration, waterproof, anti-pollution, anti-light interference, no frame, glass isolation touch.



Huadingxing is one of the leading interactive touch screen manufacturers in China, our metal mesh multi-touch foil has below advantage:

• High transparency:

Since the film is transparent, it can be attached to any transparent surface, such as glass, acrylic or plastic, without affecting the line of sight

• Multi-touch screen:

Support for multi-touch, allowing multiple contacts to operate simultaneously, suitable for complex gestures and multi-user interactions.

• Easy to install:

It can be quickly and easily attached to existing transparent surfaces without the need for large-scale retrofits or installation of complex hardware.

• Durability and reliability:

Films generally have good durability and are able to work well in a variety of environmental conditions, including outdoor and public places.

• High sensitivity:

The response to touch is very fast and accurate, providing a smooth user experience

How to book customizable touch film

Huadingxing is one of the leading interactive touch screen manufacturers in China, we can do all kinds of customizable touch foil / touch panel as per your demands.

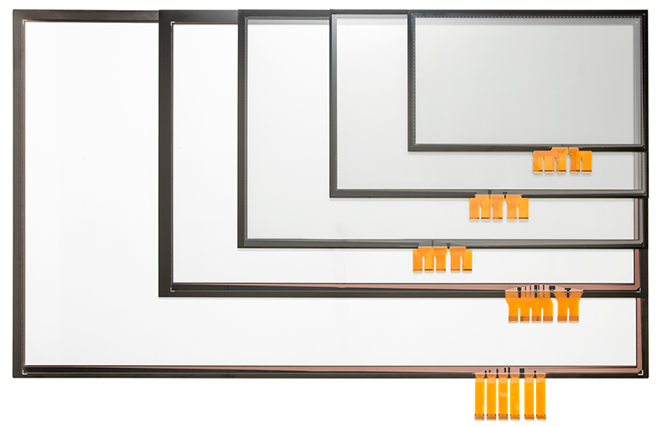

① The touch foil size

② The touch foil shape

③ Pasting services

④ Glass cover surface treatment AG,AF,AR



01



Advise Your Requirements

The size of the foil, the number of touchpoints, the level of sensitivity, and any additional features you may need, such as anti-glare or waterproofing.



02



Design And Prototype

We will design and prototype your custom PCAP touch foil for your comfirmantion



03



Production And Delivery

Once the prototype has been approved, we will begin production and deliver the final product to you.

1. Conference application: one machine multi-purpose, set projection, whiteboard, computer, TV and other functions in one, so that the work, meeting simple, efficient and convenient. Equipped with high-definition remote video conferencing system, it supports remote multi-party undelayed video conferencing, making communication without boundaries.

2. Outdoor advertising: at present, touch display as a lot of outdoor advertising media, is also a more eye-catching form of advertising.

3. All kinds of business hall: touch display is also installed in all kinds of business hall, such as: the bank business hall or communication business hall, etc.

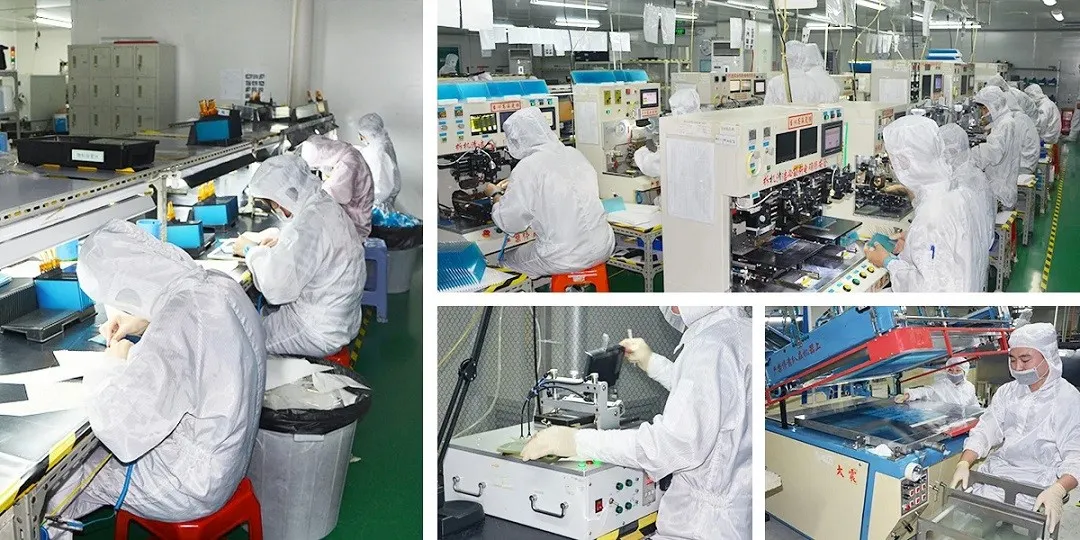

Shenzhen Huadingxing Technology Co., Ltd. founded in 2012, has production bases in Daling Mountain, Dongguan, and Wan'an County, Jiangxi Province, with a total plant area of 15,000 square meters. The company has obtained 56 invention patents at home and abroad, has strong research and development strengths and market prospects, and has upstream and downstream integration development ability.
