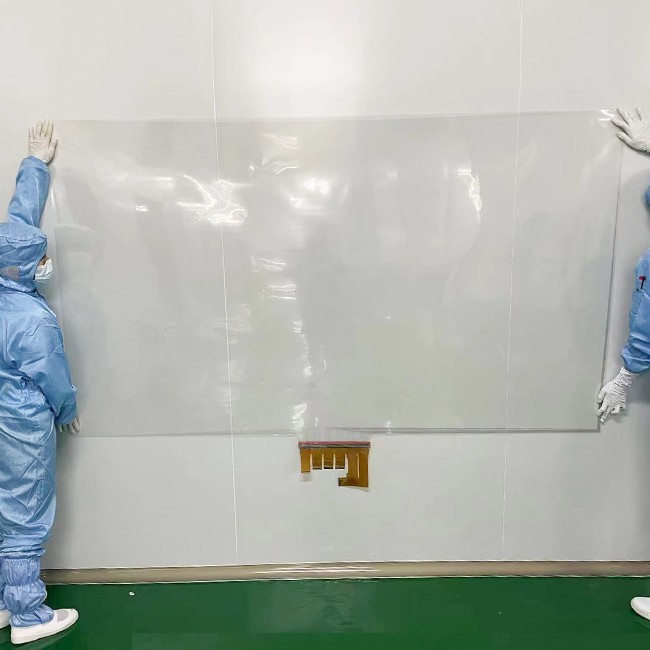

98 Inch Capacitive Multi Touch Screen
Size of Product
|
Outline dimension |
2199.91(L) × 1260.83 (W) |
|
Action area |
2167(L) × 1222.8(W) |
|
Inch size |
98″ |
|
Interface types |
USB/UART |
|
Structure type |
Metal mesh |
|
First floor |
not take (CG) |
|
Second floor |
125um OCA |
|
The third layer |
125um Film |
|
The fourth layer |
125um OCA |
|
The fifth layer |
125um Film |
|
Touch point number |
40 Points |
|
Touch accuracy |
≤2mm |
|
Transmissivity |
≥83% |
Product Characteristics
The product has the function of multi-finger touch control. This capacitive touch screen also has the advantages of high light transmittance, fast reaction speed and long life.
Metal grid transparent conductive film has both low resistance and high transmittance, used for touch sensing, can achieve the various needs of customers, which is not the traditional transparent conductive film to achieve.
Application Place
The 98-inch touch panel is widely used in education, conference, finance, hotel, advertising and other service industries to facilitate work and improve life.
