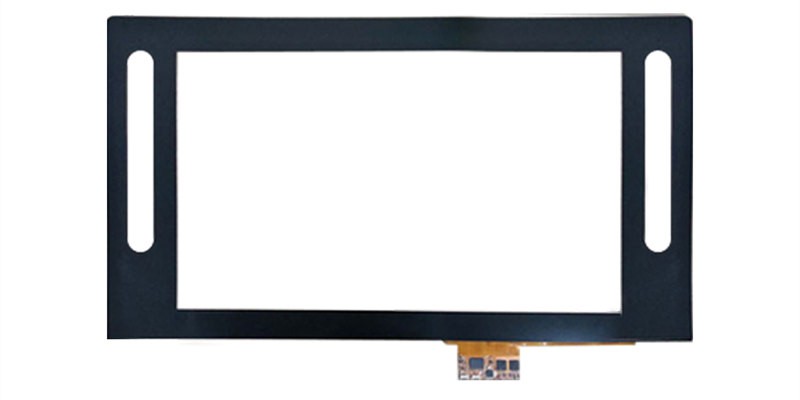

21.5 Inch Touch Screen
21.5 Inch Electromagnetic and Capacitive Dual Touch Screen
Product Application
● Digital signage: Advertisers can use dual touch screens to display interactive ads in public places. Customers can interact with ads and explore product features, services or promotions.
● Retail: Retailers can use dual touch screens to create interactive kiosks that showcase products and services. Customers can browse the catalog, view product demonstrations, and place orders.
Product Advantage
● More room for multitasking: A larger touch screen allows users to easily multitask, allowing them to work on multiple applications and projects simultaneously.

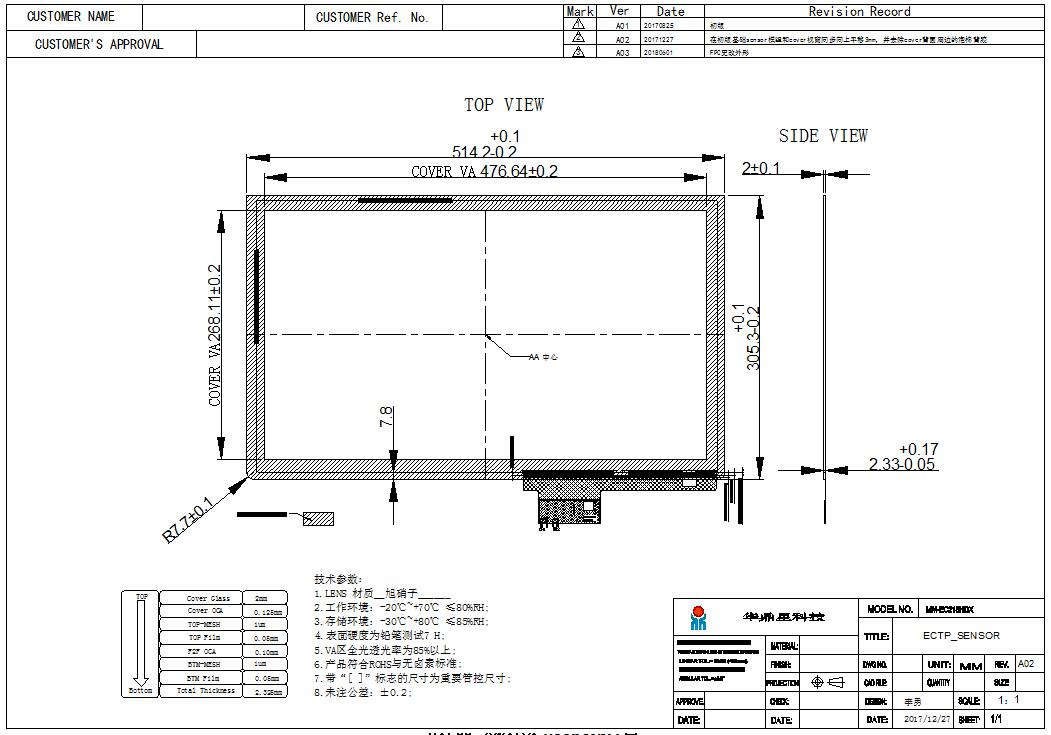

Appearance Drawing
The Engineering Drawings are as follows:
Product Specification
|
Dual Touch Screen |
||
|
Product Specification |
||
|
Project |
Content |
Remarks |
|
Principle |
Dual touch screen |
|
|
Overall dimension |
514.2mm (L) * 305.3mm (H) |
|
|
Total thickness |
2.3 (Cover-Lens + Glue + Sensor) |
|
|
AA zone |
476.64mm*268.11mm |
|
|
View area |
478.64mm*270.11mm |
|
|
TP size |
21.5 |
|
|
Interface type |
I²C/USB |
|
|
Operating temperature |
TOPL = -10, TOPH = 60 |
|
|
Storage temperature |
TOPL = -20, TOPH = 70 |
|
|
Sensor thickness |
0.4 |
|
|
Input force |
< 10g |
|
|
Control IC |
HDX8801B + HDX8811 + HDX8821A |
|
|
Capacitor input/output channel |
X: 72 Y: 41 |
|
|
Transmittance |
>88% |
|
|
Support system OS |
WINGDOG/ IOS/ Andriod |
|
|
Electromagnetic Touch Specification |
||
|
Product Specification |
||
|
Project |
Content |
Remarks |
|
Principle |
Electromagnetic Resonance |
|
|
Resolution |
4096LPI |
|
|
Coordinate accuracy |
Area A: ±0.5mm Area B: ±0.7mm Area C: ±1.0mm |
|
|
Tilt coordinate accuracy |
±3mm |
|
|
Inductive height |
3to10mm |
|
|
Suspension height |
8 to 15mm |
|
|
Burst rate |
＞266pps |
|
|
Pressure level |
Level 8192 |
|
|
Capacitive Touch |
||
|
Product Specification |
||
|
Project |
Content |
Remarks |
|
Principle |
Capacitive touch |
|
|
Resolution |
500dpi |
|
|
Touch point |
10 |
|
|
Coordinate accuracy |
±1.5 mm |
|
|
Single touch speed |
＞90pps |
|
|
Multitouch speed |
＞70pps |
|
