86 Inch Electromagnetic Capacitive Dual Touch Screen
Product Application
● 86" Electromagnetic Capacitor Dual Touch Screen It is commonly used in business and educational environments for presentations, interactive displays and collaborative work.
Product Features
● The 86-inch touchscreen is a large screen that uses touch technology and allows users to interact with it with their fingers or a stylus. The high resolution of the 86-inch touch screen makes it ideal for displaying visual content such as high-definition images and videos. Overall, the 86-inch touch screen creates an immersive and engaging user experience for a variety of applications.

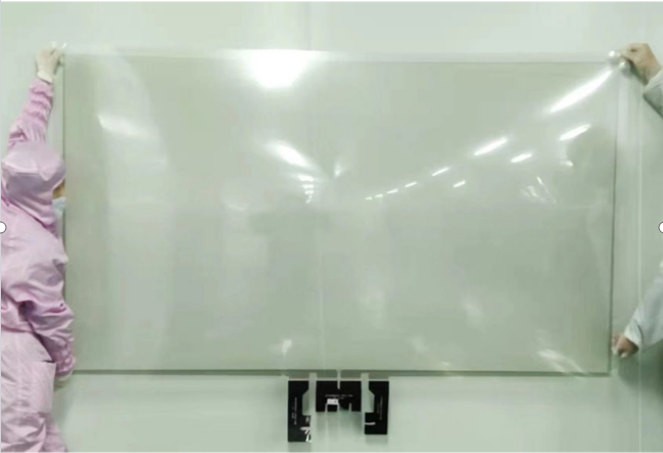

Appearance Drawing

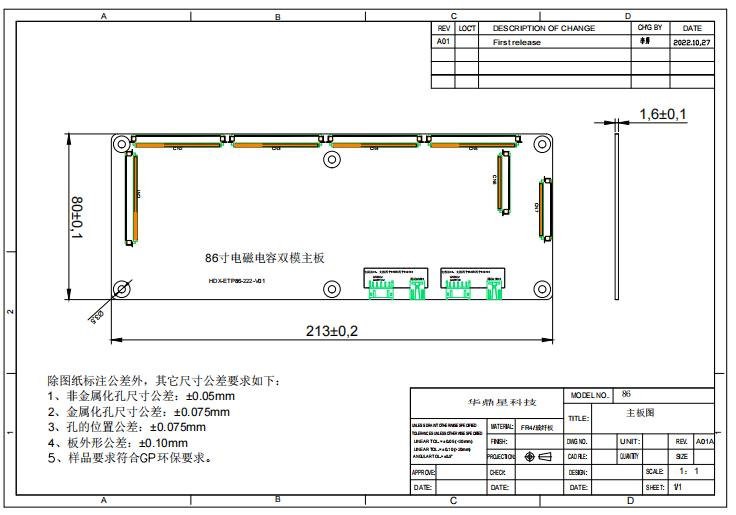

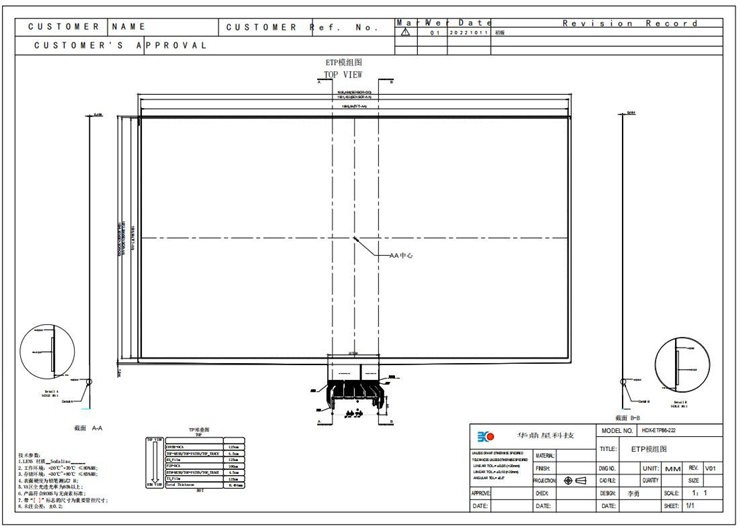

The Engineering Drawings are as follows:
Product Specification
|
Dual Touch Screen |
||||
|
Product Specification |
||||
|
Project |
Content |
Remarks |
||
|
Principle |
Dual touch screen |
|
||
|
Overall dimension |
1926.466mm (L) * 1098.203mm (H) |
|
||
|
AA zone |
1901.432mm * 1072.296mm |
|
||
|
TP size |
86 |
|
||
|
Interface type |
USB |
|
||
|
Operating temperature |
TOPL=20. TOPH=70 |
|
||
|
Storage temperature |
TOPL=-30, TOPH=80 |
|
||
|
Sensor thickness |
0.484 |
|
||
|
Input force |
＜25g |
|
||
|
Control IC |
HDX scheme |
|
||
|
Capacitor input/output channel |
TX: 80 RX: 142 |
|
||
|
Transmittance |
＞85% |
|
||
|
Support system OS |
WINGDOG/Andriod |
|
||
|
Electromagnetic Touch Specification |
||||
|
Product Specification |
||||
|
Project |
Content |
Remarks |
||
|
Principle |
Electromagnetic Resonance |
|
||
|
Resolution |
4096LPI |
|
||
|
Coordinate accuracy |
Area A: ±1.0mm Area B: ±1.2mm Area C: ±1.5mm |
|
||
|
Tilt coordinate accuracy |
±3mm |
|
||
|
Inductive height |
3to10mm |
|
||
|
Suspension height |
8 to 15mm |
|
||
|
Burst rate |
＞266pps |
|
||
|
Pressure level |
Level 8192 |
|
||
|
Capacitive Touch |
||||
|
Product Specification |
||||
|
Project |
Content |
Remarks |
||
|
Principle |
Capacitive touch |
|
||
|
Resolution |
32768dpi |
|
||
|
Touch point |
40 |
|
||
|
Coordinate accuracy |
±2mm |
|
||
|
Single touch speed |
＞125pps |
|
||
|
Multitouch speed |
＞100pps |
|
||
