15.6 Inch Electromagnetic Capacitive Dual Touch Screen

1. Touch precision
2. High optical penetration
3. Long touch life, any point can withstand 50 million touches

Send Inquiry

Product Introduction

15.6 Inch Electromagnetic Capacitive Dual Touch Screen Multi Touch Display

Main Features Of EM+PCAP dual touch screen:

1. Touch precision

2. High optical penetration

3. Long touch life, any point can withstand 50 million touches

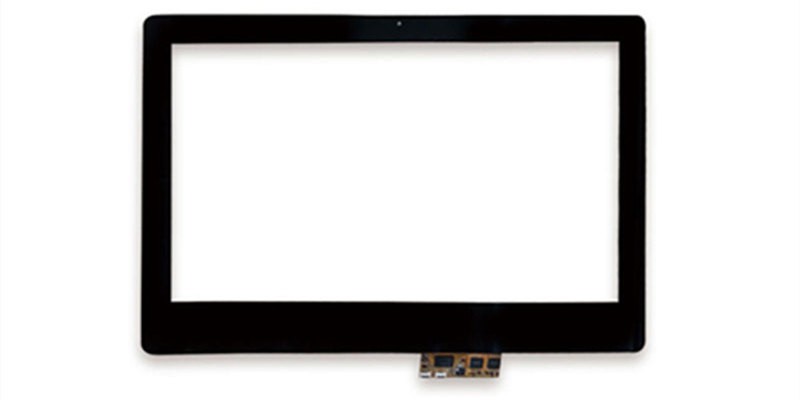

Appearance Drawing

product-800-400

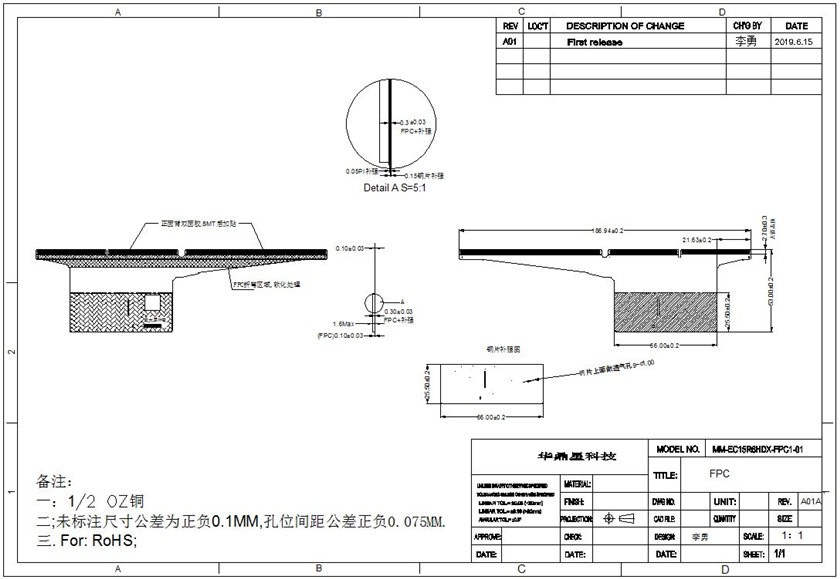

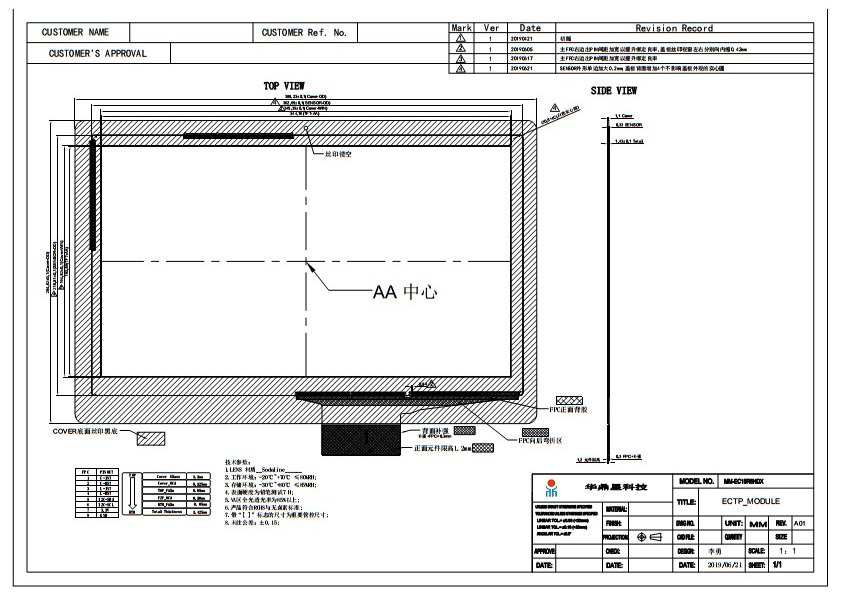

The Engineering Drawings are as follows:

product-840-579

product-841-595

Product Specifications

Dual Touch Screen
Product Specification
Project	Content	Remarks
Principle	Dual touch screen
Overall dimension	388.23mm (L) * 254.82mm (H)
Total thickness	2.3 (Cover-Lens + Glue + Sensor)
AA zone	345.39mm*194.82mm
View area	344.16mm*193.59mm
TP size	15.6
Interface type	USB
Operating temperature	TOPL = -10, TOPH = 60
Storage temperature	TOPL = -20, TOPH = 70
Sensor thickness	0.4
Input force	< 10g
Control IC	HDX8801B + HDX8811 + HDX8821A
Capacitor input/output channel	X: 72 Y: 41
Transmittance	>88%
Support system OS	WINGDOG/ IOS/ Andriod
Electromagnetic Touch Specification
Product Specification
Project	Content	Remarks
Principle	Electromagnetic Resonance
Resolution	4096LPI
Coordinate accuracy	Area A: ±0.5mm Area B: ±0.7mm Area C: ±1.0mm
Inductive height	±3mm
Suspension height	3to10mm
Burst rate	8 to 15mm
Pressure level	＞266pps
Inductive height	Level 8192
Capacitive Touch
Product Specification
Project	Content	Remarks
Principle	Capacitive touch
Resolution	500dpi
Touch point	10
Coordinate accuracy	±1.2mm
Single touch speed	＞90pps
Multitouch speed	＞70pps
