10.1 Touch Screen
10.1 Inch Electromagnetic Touch Screen for Monitor
Product Application
The 10.1 inch touch screen module has a broad application prospect in industrial applications, embedded control panels, medical machinery, POS, PDA, handheld devices and other fields the main features of 10.1 inch touch screen.
Main Features
1. Electromagnetic technology: Electromagnetic capacitor dual touch screen uses electromagnetic technology to sense the position of the stylus or finger. This provides precision and precise touch input, even for fine details and small ICONS.
2. Capacitive Touch technology: Touch screens also use capacitive technology to detect finger touch input. This allows for multi-touch gestures, such as pinching to zoom and swiping, which are commonly used on smartphones and tablets.
3. Tempered glass: The screen is protected by tempered glass, which prevents scratches, cracks and other damage. This helps ensure durability and longevity, especially in high-use environments.
4. Multi-platform compatibility: The touch screen supports Windows, IOS, Android and other operating systems. This makes it versatile and easy to integrate into existing technical Settings.

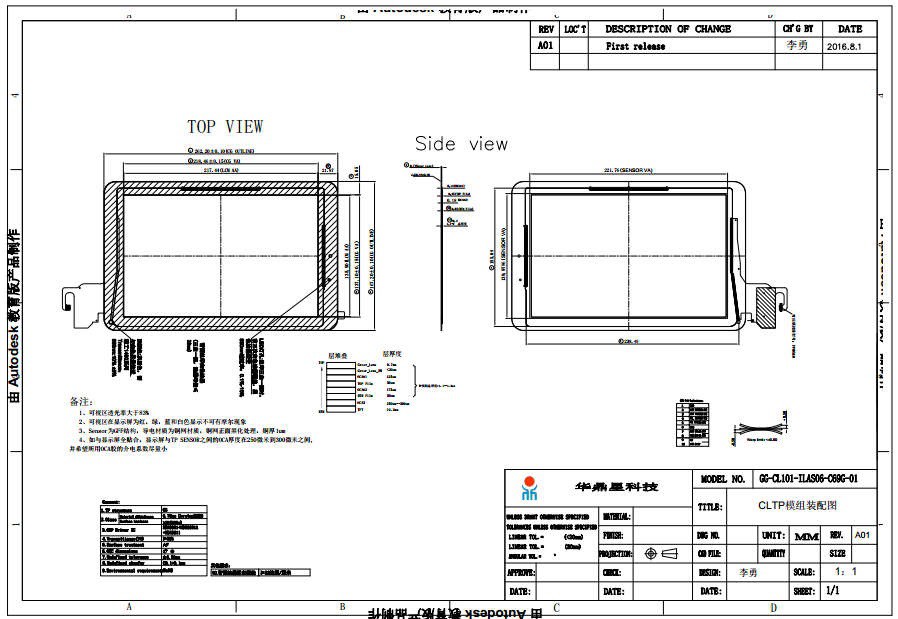

Size of Product
|
Dual Touch Screen |
||
|
Product Specification |
||
|
Project |
Content |
Remarks |
|
Principle |
Dual touch screen |
|
|
Overall dimension |
262.2mm (L) * 167.2mm (H) |
|
|
Total thickness |
1.3 (Cover-Lens + Glue + Sensor) |
|
| AA Zone |
217.44mm*135.9mm |
|
|
TP dimension |
10.1 |
|
|
Interface type |
I②C |
|
|
Operating temperature |
TOPL = -10, TOPH = 60 |
|
|
Storage temperature |
TOPL = -20, TOPH = 70 |
|
|
Sensor thickness |
0.4 |
|
|
Input force |
< 10g |
|
|
Control IC |
HDX8801B + HDX8811 + HDX8821A |
|
|
Capacitor input/output channel |
X: 42 Y: 27 |
|
|
Transmittance |
>88% |
|
|
Supports the system OS |
WINGDOG/ IOS/ Andriod |
|
|
Electromagnetic Touch Specification |
||
|
Product Specification |
||
|
Project |
Content |
Remarks |
|
Principle |
Electromagnetic Resonance |
|
|
Resolution |
4096LPI |
|
|
Coordinate accuracy |
Area A: ±0.5mm Area B: ±0.7mm Area C: ±1.0mm |
|
|
Tilt coordinate accuracy |
±3mm |
|
|
Inductive height |
3to10mm |
|
|
Suspension height |
8 to 15mm |
|
|
Burst rate |
＞266pps |
|
|
Pressure level |
Level 8192 |
|
|
Capacitive Touch |
||
|
Product Specification |
||
|
Project |
Content |
Remarks |
|
Principle |
Capacitive touch |
|
|
Resolution |
500dpi |
|
|
Touch point |
10 |
|
|
Coordinate accuracy |
±1.18 mm |
|
|
Single touch speed |
＞90pps |
|
|
Multitouch speed |
＞70pps |
|
