23.8" Electromagnetic and Capacitive PC Touch Panel
●Space-saving design: Touch screens can be built into devices and don't require additional space. Consequently, they can help manufacturers create slimmer and sleeker products that can be easily carried or mounted in small spaces
●Multi-touch capabilities: Many touch screens can recognize multiple touch points at once, which means users can perform a range of gestures such as swiping, pinching, and tapping. This can enable greater functionality and flexibility in tasks
●Durability: Many touch screens are designed to be durable and resistant to water, dust, and scratches. As a result, they are well suited to use in harsh industrial or outdoor environments.
23.8 inch Electromagnetic + Capacitive 2-in-1 PC Touch Panel
The EM+PCAP 2-in-1 dual touch screen developed by Huadingxing at present will be a great innovation of electromagnetic induction touch control technology for PC touch
Products Description

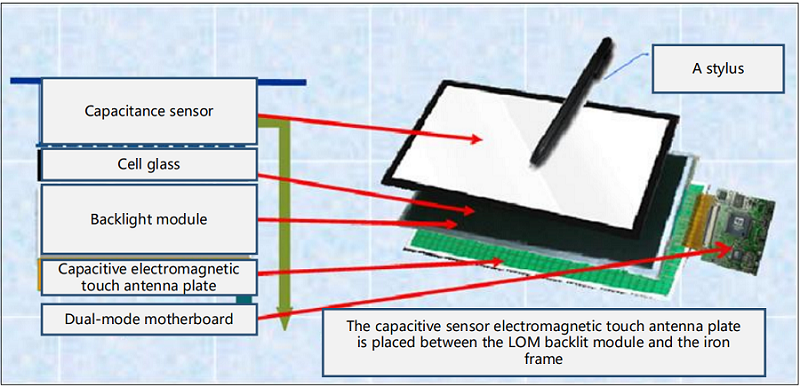

the EM+PCAP dual touch screen structure
1. Glass cover plate
2. Capacitor SENSOR+ electromagnetic touch antenna board (electromagnetic capacitor 2-in-1 touch screen)
3.Cell glass
4. Backlight module
5. Dual mode master board
Product advantage：
●Large Screen: 23.8-inch display is larger than most laptop screens, making it easier to read and control.
●Touch Screen: The touchscreen interface allows a more intuitive user experience and eliminates the extra peripherals like a keyboard and mouse, making it more convenient to use.
●Versatility: 23.8-inch touchscreen can be used in a variety of scenarios such as gaming, video conferencing, digital art, or business presentations.
●Easy to set up: Touchscreen products are generally easy to set up with simple plug-and-play functionality.
Product Specification
|
EM+PCAP Dual touch screen |
||
|
Product specification |
||
|
project |
content |
remarks |
|
principle |
Dual touch screen |
|
|
Overall dimension |
562.2mm(L)*335.2mm(H) |
|
|
Total thickness |
2.33(Cover-Lens+glue+sensor) |
|
|
AA zone |
527.04mm*296.46mm |
|
|
Visual area |
526.4mm*295.46mm |
|
|
TP size |
23.8 |
|
|
Interface type |
USB |
|
|
Operating temperature |
TOPL=20. TOPH=70 |
|
|
Storage temperature |
TOPL=-30, TOPH=80 |
|
|
Sensor thickness |
0.33 |
|
|
Input force |
＜25g |
|
|
Control IC |
HDX8801B+HDX8811+HDX8821A |
|
|
Capacitor input/output channel |
TX:45 RX:80 |
|
|
transmittance |
＞85% |
|
|
Support system OS |
WINGDOG/ IOS/ Andriod |
|
|
Electromagnetic touch specification |
||
|
Product specification |
||
|
project |
content |
remarks |
|
principle |
Electromagnetic Resonance |
|
|
resolution |
4096LPI |
|
|
Coordinate accuracy |
Area A：±0.5mm Area B：±0.7mm Area C：±1.0mm |
|
|
Tilt coordinate accuracy |
±3mm |
|
|
Inductive height |
3to10mm |
|
|
Suspension height |
8 to 15mm |
|
|
Burst rate |
＞266pps |
|
|
Pressure level |
Level 8192 |
|
|
Capacitive touch |
||
|
Product specification |
||
|
project |
content |
remarks |
|
principle |
Capacitive touch |
|
|
resolution |
500dpi |
|
|
Touch point |
10 |
|
|
Coordinate accuracy |
±1.5 mm |
|
|
Single touch speed |
＞90pps |
|
|
Multitouch speed |
＞70pps |
|
Products Application

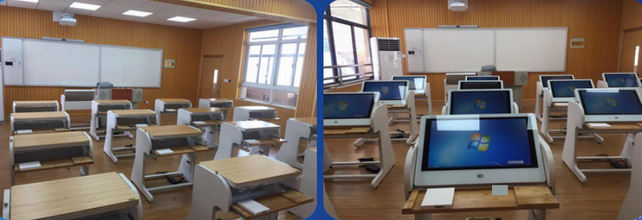

The 23.8-inch electromagnetic capacitive dual touch screen module is suitable for display terminals of control systems, commercial digital displays, industrial applications, desktop computers and workstations, stand-alone monitors for small displays, process controller monitors, etc.
The computer uses the electromagnetic capacitive two-in-one touch screen with the electromagnetic pen to use, can drag and drop, gesture erase, notes, flexible writing, real handwriting writing, natural writing, interactive speech and other functions, so that you feel three-dimensional writing, drawing scene immersive, inspiration essay presentation
Company Profile
Shenzhen HuadingxingTechnology Co., Ltd. founded in 2012, has production bases in Daling Mountain, Dongguan, and Wan'an County, Jiangxi Province, with a total plant area of 15,000 square meters. The company has obtained 56 invention patents at home and abroad, has strong research and development strengths and market prospects, and has upstream and downstream integration development ability.
FAQ
Q1: Can you provide customized service?
A: Yes, both OEM & ODM services are available and welcome.
Q2: Are you a munufacturer or trading company?
A：We are a munufacturer with our own factory based in Shenzhen, China.
Q3:What are the core advantages of Huadingxing?
A:Huadingxing is the leader of large-size electromagnetic touch screen /Metal mesh capacitive touch screen/EM+PCAP 2-in-1 touch screen and stylus product technology in China. It is also a manufacturer with independent control solutions.
Q4: What systems do touch products support?
A:It can support Windows/Andriod/iOS, details pleaseSee product specifications
Q5:What is the meaning of EM+PCAP dual touch screen?
The EM+PCAP 2-in-1 dual touch screen developed by Huadingxing at present will be a great innovation of electromagnetic induction touch control technology. ETP is the abbreviation of EMR Touch Panel. ETP is the combination of electromagnetic induction antenna and projective capacitance graphics, so that the single sensor has both pen and finger Touch mode, the advantage is that it can save the past electromagnetic screen complex production process, and also can make the overall device thinner.
Q6:What is the EM+PCAP structure?
1. Glass cover plate
2. Capacitor SENSOR+ electromagnetic touch antenna board (electromagnetic capacitor 2-in-1 touch screen)
3.Cell glass
4. Backlight module
5. Dual mode master board
