EMR And PCAP All In One Touch Display
Assembly mode:Easy to assemble, two-in-one only needs to fit with tempered glass
Support size:10.1 "-86"
Handwriting accuracy: high
Pressure: Up to 8192 Ease of nib change：can be changed at will
Freedom of design diversity:Many choices, high freedom, support for multiple pens
compatibility:Android、apple、Windows、Linux
Induced suspension height:5-30㎜
EM+PCAP All In One Touch Display Touch Screen Panel
Products Description
The EMR+PCAP dual touch screen panel, developed by Huadingxing, is set to revolutionize the landscape of electromagnetic induction touch control technology. This groundbreaking creation has garnered global patents, making it a pioneering force in the field, with the potential to reshape the way we interact with touch screens.
Products Structure

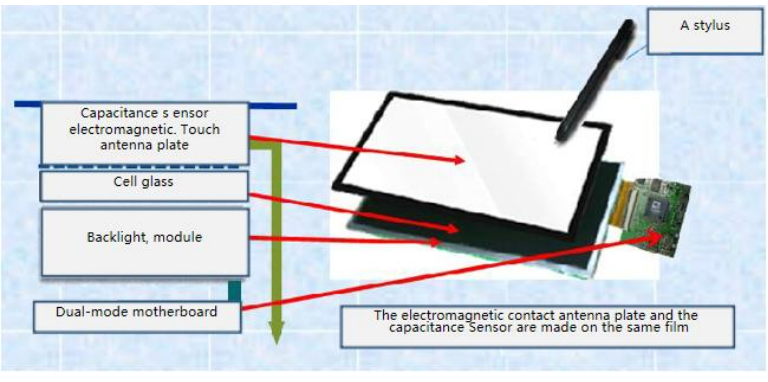

EMR+PCAP dual touchscreen structure
1. Glass cover plate
2. Capacitor SENSOR+ electromagnetic touch antenna board (electromagnetic capacitor 2-in-1 touch screen)
3.Cell glass
4. Backlight module
5. Dual mode master board
Product Advantanges

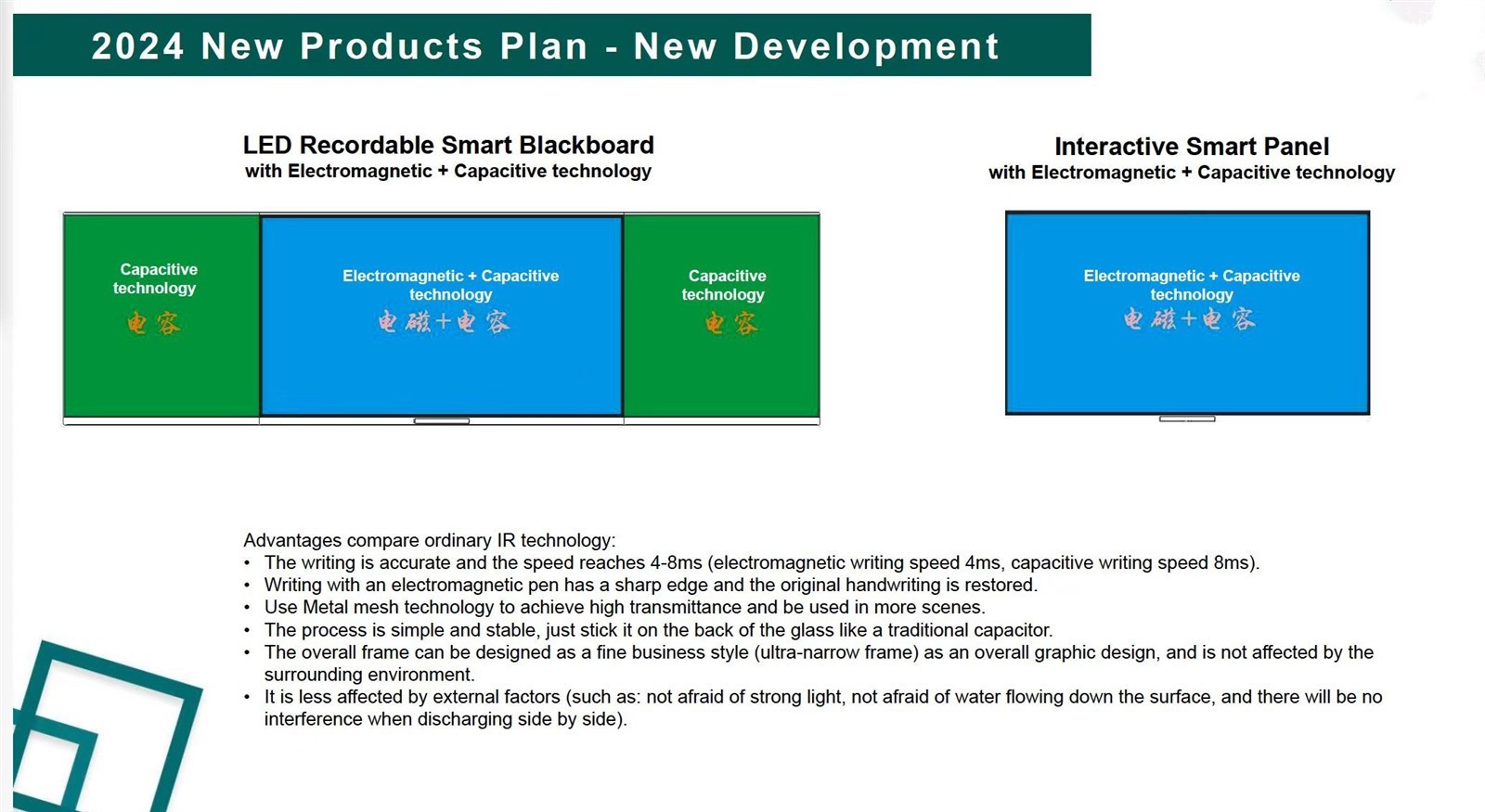

Advantages compare ordinary technology with EM+PCAP touch screen
- The writing is accurate and the speed reaches 4-8ms (electromagnetic writing speed 4ms, capacitive writing speed 8ms)
- Writing with an electromagnetic pen has a sharp edge and the original handwriting is restored.
- Use Metal mesh technology to achieve high transmittance and be used in more scenes.
- The process is simple and stable, just stick it on the back of the glass like a traditional capacitor.
- The overall frame can be designed as a fine business style (ultra-narrow frame) as an overall graphic design, and is not affected by the surrounding environment
- It is less affected by external factors (such as. not afraid of strong light. not afraid of water flowing down the surface, and there will be no interference when discharging side by side).
Electromagnetic capacitive technology comparison
|
Contrast item |
Huadingxing electromagnetic capacitive two in one |

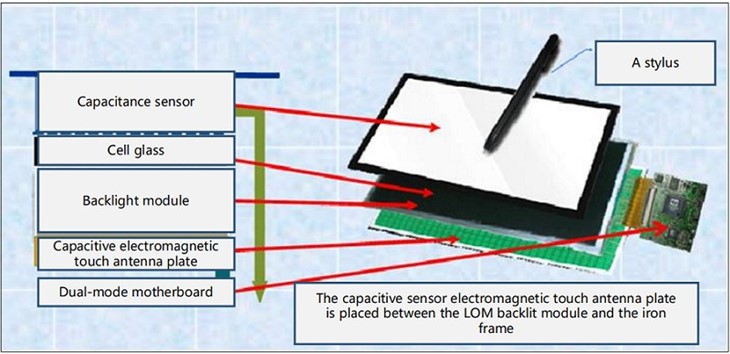

The capacitive needs to be fitted with tempered glass, and the electromagnetic needs to be placed after the liquid crystal |
Capacitive + active capacitive handwriting |
|
Assembly mode |
Easy to assemble, two-in-one only needs to fit with tempered glass |
The capacitive needs to be fitted with tempered glass, and the electromagnetic needs to be placed after the liquid crystal |
Easy to assemble, only need to fit with tempered glass |
|
Support size |
10.1 "-86" |
Three inches. -86 inches |
At present, it is difficult to mass produce more than 46 inches |
|
Handwriting accuracy |
high |
high |
low |
|
pressure |
Up to 8192 |
Up to 8192 |
Below 4096 |
|
Tilt Angle identification |
support |
support |
support |
|
Side key function |
can be two |
can be two |
can be two |
|
battery |
must |
Active electromagnetic pen with battery, passive electromagnetic pen does not use |
must |
|
Nib conduction |
It isn't necessary |
It isn't necessary |
must |
|
The nib is optional |
A variety of ((Felt/POM/Elastomer/Ceramic, etc.) |
A variety of ((Felt/POM/Elastomer/Ceramic, etc.) |
Two types (POM/Elastomer) |
|
Ease of nib change |
Change at will |
Change at will |
Do not change at will (FW needs to change according to different nib materials) |
|
Freedom of design diversity |
Many choices, high freedom, support for multiple pens |
Few choices, low freedom, support for multiple pens |
Few choices, low freedom, only support a single pen |
|
compatibility |
Android,apple,Windows,Linux |
Android,apple,Windows,Linux |
Use pens that support specialized protocols for different operating systems |
|
Overall cost comparison |
low |
high |
low |
|
Whether multiple pens are supported |
A maximum of four strokes are supported |
Four strokes |
Single stroke |
|
Induced suspension height |
5-30㎜ |
5-30mm |
2-5mm |
Products Application
The Electromagnetic Capacitive Dual Touch Screen is widely utilized in various settings, including business and educational environments, due to its versatility and functionality. This innovative touch screen technology proves invaluable for a range of applications, such as engaging presentations, interactive displays, and collaborative work scenarios.

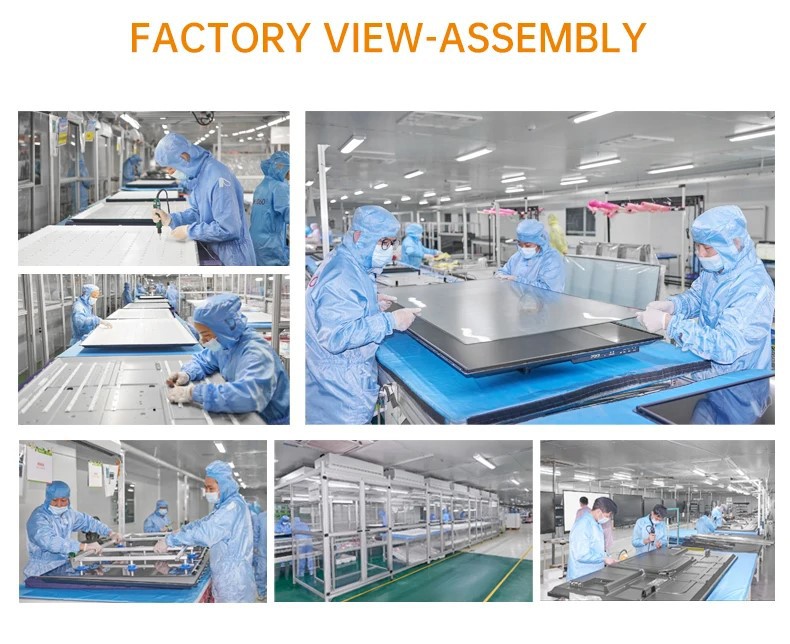

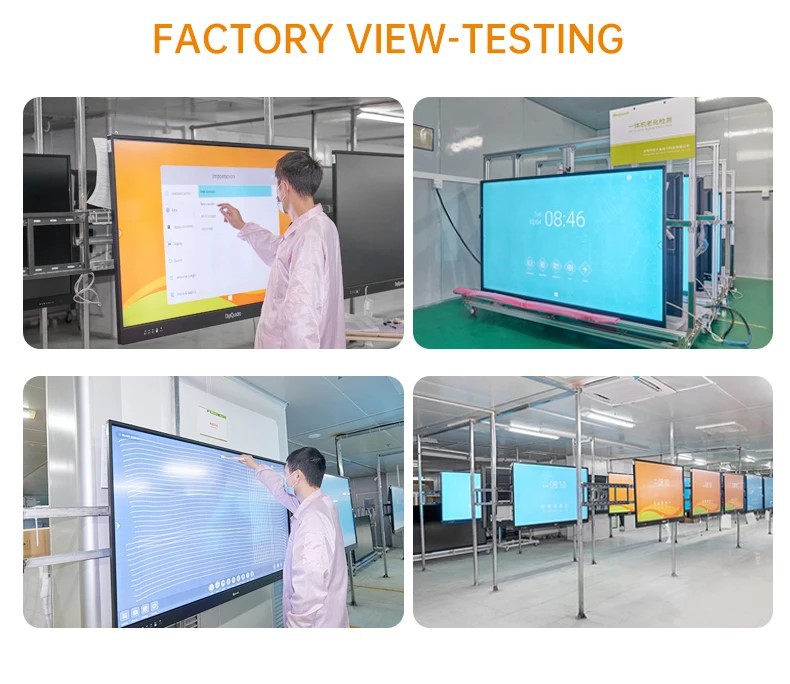

Since its inception in 2012, Shenzhen Huadingxing Technology Co., Ltd. has been a prominent player in the industry. Spanning across three production bases in Daling Mountain, Dongguan, and Wan'an County, Jiangxi Province, the company's expansive manufacturing facilities cover a total area of 15,000 square meters. Recognized for its outstanding research and development prowess, the company has secured an impressive collection of 56 invention patents, both at home and abroad. With a strong foothold in the market and a seamless integration of upstream and downstream operations, Huadingxing demonstrates its capacity for sustained growth and success.
FAQ
Q1: Can you provide customized service?
A: Yes, both OEM & ODM services are available and welcome.
Q2: Are you a munufacturer or trading company?
A：We are a munufacturer with our own factory based in Shenzhen, China.
Q3:What are the core advantages of Huadingxing?
A:Huadingxing is the leader of large-size electromagnetic touch screen /Metal mesh capacitive touch screen/EM+PCAP 2-in-1 touch screen and stylus product technology in China. It is also a manufacturer with independent control solutions.
Q4: What systems do touch products support?
A:It can support Windows/Andriod/iOS, details pleaseSee product specifications
Q5:What is the meaning of EM+PCAP dual touch screen?
The EM+PCAP 2-in-1 dual touch screen developed by Huadingxing at present will be a great innovation of electromagnetic induction touch control technology. ETP is the abbreviation of EMR Touch Panel. ETP is the combination of electromagnetic induction antenna and projective capacitance graphics, so that the single sensor has both pen and finger Touch mode, the advantage is that it can save the past electromagnetic screen complex production process, and also can make the overall device thinner.
Q6:What is the EM+PCAP structure?
1. Glass cover plate
2. Capacitor SENSOR+ electromagnetic touch antenna board (electromagnetic capacitor 2-in-1 touch screen)
3.Cell glass
4. Backlight module
5. Dual mode master board
