LCD Touch Panel
What is the LCD touch screen panel?
The LCD touch panel is a display screen with touch-sensitive functions that allows the user to interact directly with the displayed content by touching the screen. It consists of an LCD panel and a touch-sensitive layer, and can detect a user's touch and convert it into a corresponding command or input on the screen. LCD touch screens are widely used in various applications such as smartphones, tablets, laptops, game consoles and medical devices.
Product Application
We can customize the entire touch screen to the customer's request. The 7-23.8-inch waterproof LCD touch screen is a device with excellent performance and can be used in the following areas: navigation and measuring instruments, logistics and data collection, food and meat processing, sauna, health and beauty applications, outdoor environment, etc. If you are interested in more waterproof LCD touch screens, please contact us!
Product Superiority
1. User-friendly interface: The LCD touch screen provides a user-friendly interface that can be easily guided by the touch of your fingers. This allows users to easily access and control various settings and functions.
2. High resolution: The high resolution of the LCD touch panel allows for the display of clear and detailed images, making it an ideal choice for displaying graphics and video.
3. Space saving: The LCD touch screen saves space and does not need a keyboard or mouse, helping to reduce the clutter on your desk or workstation.
4. Durability: The LCD touch screen is durable and can withstand a lot of wear and tear, making it ideal for use in industrial and commercial environments.
5. Energy saving: LCD touch screen is energy saving, less power consumption than traditional display, environmentally friendly and low operation cost.
6. Multi-touch: The LCD touch panel supports multi-touch function, allowing multiple fingers to control and navigate the interface.
7. Multifunctionality: LCD touch screens can be used in a variety of applications, including point-of-sale systems, kiosks, game systems, and digital signage displays.
Product Specification
|
Project |
Content |
|

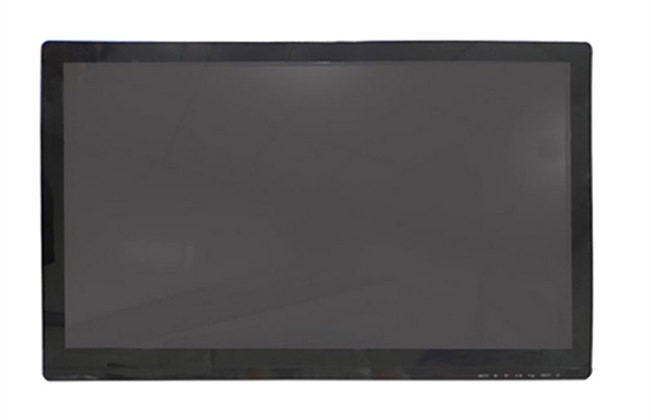

Product name |
A 23.8-inch LCD dual-touch monitor |
|
Version number |
HDX238DM-FP |
|
Ratio |
16:9 |
|
Full plate size |
Length X width X thickness 517.8*323.8* 56.2mm Diagonal dimension 546.2mm (23.8") |
|
Working principle |
Digitizer EMR |
|
Resolution |
0.012mm (1 inch(25.4mm)/2048LPI) |
|
Pen tilt Angle |
± 45 (from vertical up) |
|
Positioning accuracy |
± 0.5mm (show middle area) ± 3mm (3mm width / degree of display area) |
|
The height at which the pen touches |
And 5 to 14mm away from the sensing surface |
|
Pen tracking speed |
> 3 m/s (USB cable Data Transfer Mode) |
|
Pen inductance pressure |
> 15g |
|
Response rate |
> 260 pps |
|
Pen pressure range |
Full-pen pressure level 8192 |
|
Power supply for hand-written parts |
USB bus power supply |
|
Power consumption |
＜100mA |
|
The power supply for the electronic pen |
Replacement battery |
|
The working time of the pen power supply |
Continuous use: 600 hours (Support automatic sleep to extend usage time) |
