Multi Touch Capacitive Touch Screen

Since its establishment in 2012, the company has obtained a number of invention patents at home and abroad, with strong research and development strength and market prospects, and has the ability of upstream and downstream integration and development. At present, this product is the main product of our company, and has been recognized by many customers after the launch. Multi-touch display has different sizes for you to choose, and can be customized according to different needs of customers.

Metal grid capacitive touch technology (Metal Mesh) is using advanced etching technology will copper and other conductive metal and oxide wire on the PET substrate conductive layer, forming very fine rules mesh transparent conductive electrode film, its excellent conductivity, high transparency and touch sensitivity, based on the joint conductive electrode film by induction touch signal transmission function.

The metal grid capacitors screen works in the same principle as the ITO capacitors screen, and different conductive line modules are etched on the two layers of conductive material coating. The etched figures on the two modules are perpendicular to each other and can be seen as sliders with continuous changes in the X and Y directions. Since the X and Y architectures are on different surfaces, a capacitor junction is formed at their intersection. One slider can be used as a driver line, and the other slide as a detection line. When the current passes through one wire in the drive line, if there is a signal of capacitance change outside, it will change the capacitance node on the other layer of wire. The change of capacitance value can be detected by measuring the electronic loop connected to it, and then through the A / D controller to the digital signal for the computer to obtain the (X, Y) axis position, and then reach the positioning location.

1. Different sizes can be customized for customers, and there is no minimum starting order volume.

2. Products in strict accordance with the ISO9000 standard, through layers of quality control.

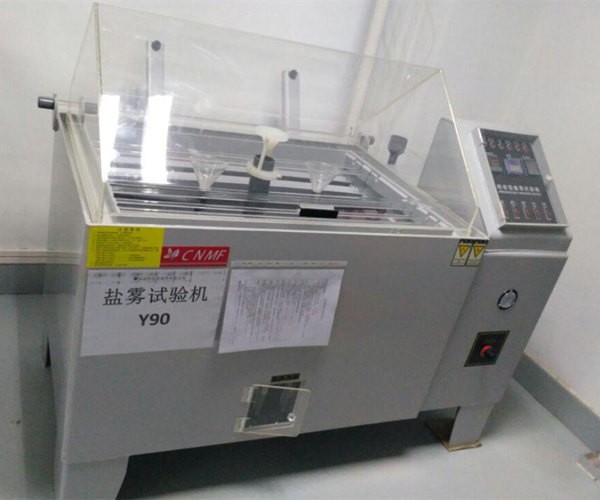

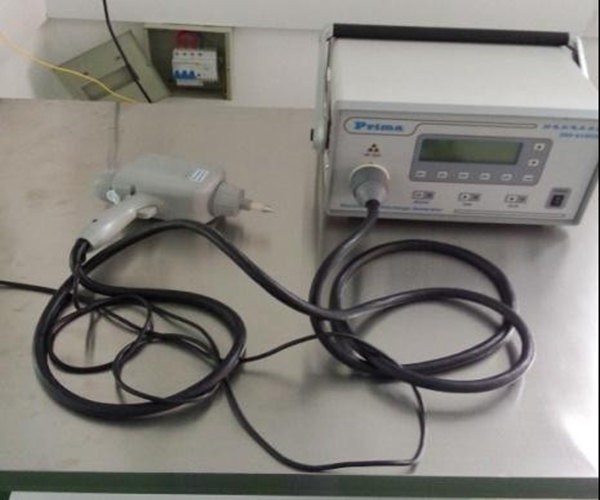

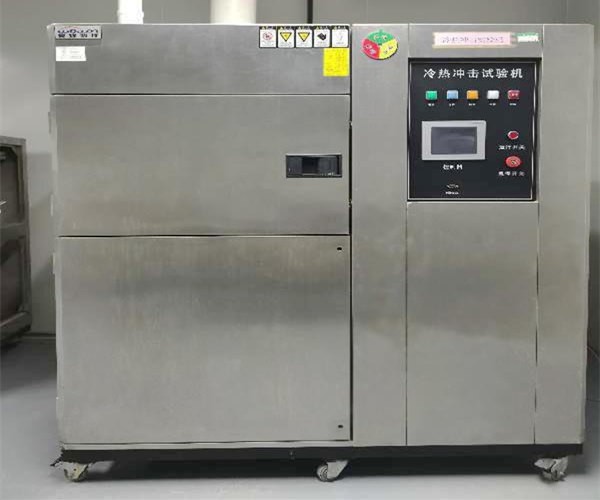

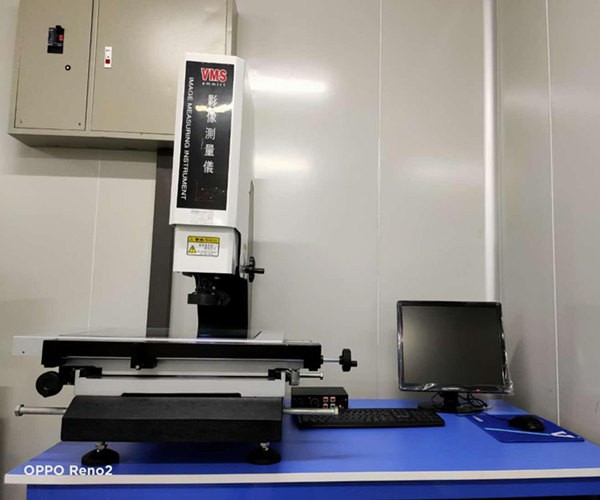

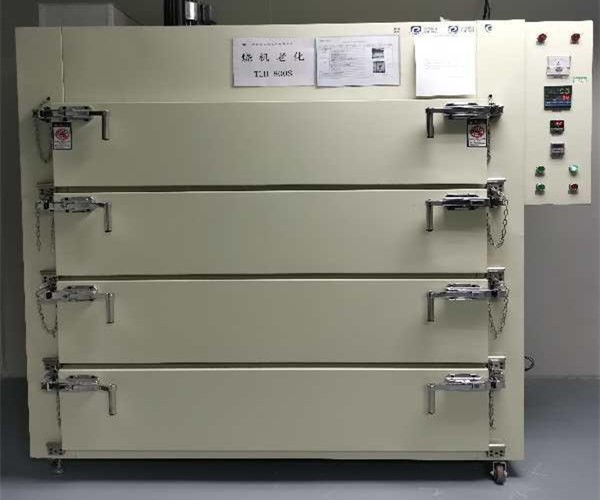

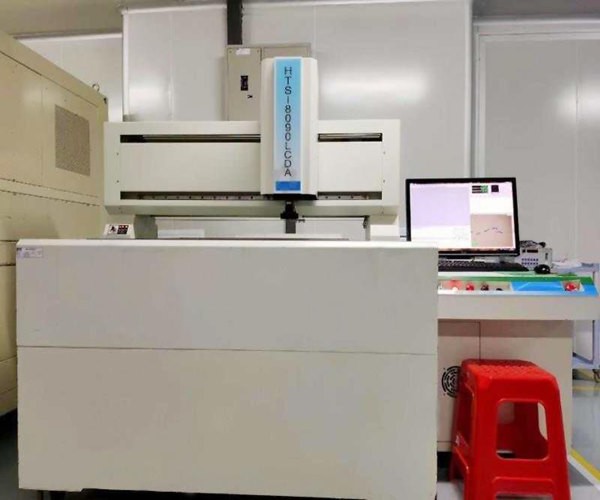

3. The company has an independent laboratory, which can do different experimental verification for the products.

4. Low square resistance, less than 1 ohm.

5. Pure copper film production, can be zero fit.

6. Bend resistance, can apply soft screen.

7. Ultra-narrow frame (wire frame + 0.06-0.08).
